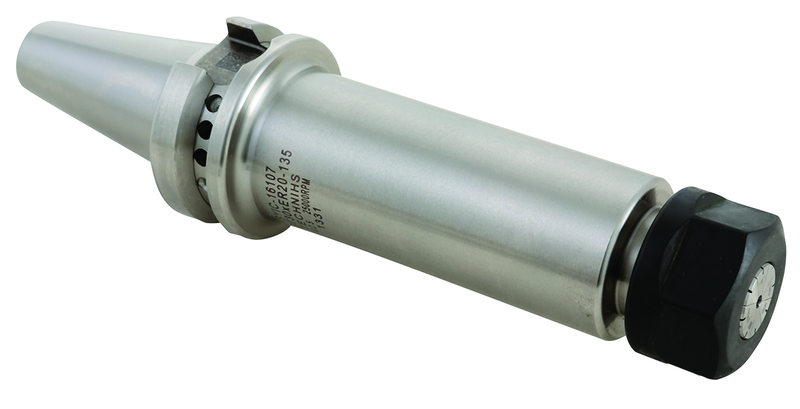

BT30 x ER16-70 - Collet Chuck

Item #: TE1216101
Manufacturer: Techniks
Mfg #: 16101

Technical Specifications:
*Brand Name: Techniks *Capacity: ER16 *Chuck Size: BT30 *Collets Included: No *Coolant Supply: Coolant-thru Spindle with Coolant Capable Retention Knob, sold separately *Head Length/Projection: 70mm *Model Number: 16101 *Mount: BT30 *Nose Diameter: 1.11 *Nut Diameter: 1.08 *Overall Length: 7.42 *Size/Range: .019 - .413 *Spindle Interface: BT30 *Weight: 1.3 lbs *Wrench Number: TE1204609

Description:
*Techniks Collet Chucks are balanced to 25,000 RPM at G2.5 tolerance *They are individually lab tested for accuracy and balance and come with their individual performance report *Techniks holders achieve 0.0001" or less T.I.R. as measured from the taper to the collet pocket *

Shipping Info:
*Actual Weight - 1.3000 *Dimensions - Height: 5.00 Length: 3.00 Width: 3.00
