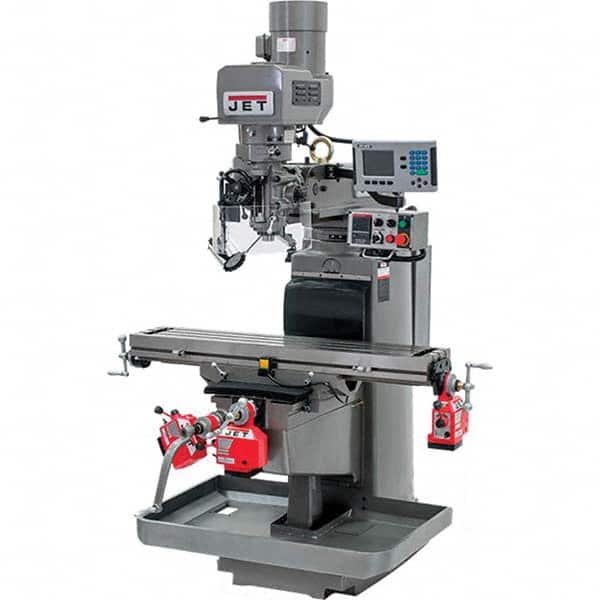

Jet - 42 x 9" 230V Electronic Variable Speed Control 3 Phase Knee Milling Machine
Item #: 31530264
Brand: Jet
Model #: 690650
Features and Benefits
Electronic Variable Speed control (EVS, are similar to variable speed pulleys, but the speed is controlled electronically rather than manually by turning a dial. They feature several speeds within a specified speed range.
Three-phase refers to three individual lines (coils) that connect to and run voltage through the motor. Each line alternates in a sequence as they reach their voltage peak. They provide a more stable flow of voltage and more horsepower to the equipment.
| Product Specifications | |
|---|---|
| Spindle Speed Control | Electronic Variable Speed |
| Table Length (Inch) | 9 |
| Table Width (Inch) | 42 |
| Phase | 3 |
| Voltage | 230V |
| Longitudinal Travel (Decimal Inch) | 29.8750 |
| Cross Travel (Decimal Inch) | 14.5000 |
| Knee Travel (Decimal Inch) | 14.5000 |
| Minimum Spindle Speed (RPM) | 60.00 |
| Maximum Spindle Speed (RPM) | 5440.00 |
| Includes | ACU-RITE 203 |
| Spindle Taper Size | R8 |
| Spindle Travel Length (Inch) | 5 |
| Quill Diameter (Inch) | 3-3/8 |
| Maximum Spindle to Table Distance (Inch) | 17-1/2 |
| Minimum Spindle to Column Distance (mm) | 26.75 |
| Minimum Spindle to Column Distance (Decimal Inch) | 4.7500 |
| Maximum Spindle To Column Distance (mm) | 550.00 |
| Table Load Capacity (kg) | 3.00 |
| Number of T-Slots | 90 |
| Left-Hand Head Tilt (Degrees) | 90.00 |
| Right-Hand Head Tilt (Degrees) | 45.00 |
| Forward Head Tilt (Degrees) | 45.00 |
| Ram Travel Length (Decimal Inch) | 15.8750 |
| Ram Turret Swivel (Degrees) | 2.00 |
