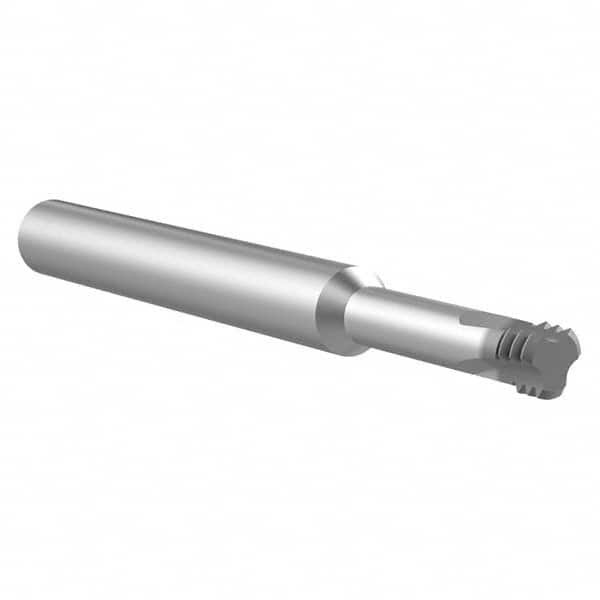

Allied Machine and Engineering - 7/16 Internal/External 4-Flute Solid Carbide Helical Flute Thread Mill
Item #: 12337374
Brand: Allied Machine and Engineering
Model #: TM43720-3T2X
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
AM210 is a premium coating designed to improve tool life and cut at high speeds
| Product Specifications | |
|---|---|
| Threads Per Inch | 20 |
| Material | Solid Carbide |
| Thread Size (Inch) | 7/16 |
| Thread Type | Internal/External |
| Shank Diameter (Decimal Inch) | 0.3120 |
| Number of Flutes | 4 |
| Cutting Diameter (Decimal Inch) | 0.3120 |
| Length of Cut (Decimal Inch) | 0.9800 |
| Finish/Coating | AM210 |
| Through Coolant | NonThrough Coolant |
| Minimum Nominal Diameter | 7/16 |
| Overall Length (Decimal Inch) | 2.5000 |
| Thread Standard | UN |
| Flute Direction | Left Hand |
| Thread Mill Type | Long Reach |
