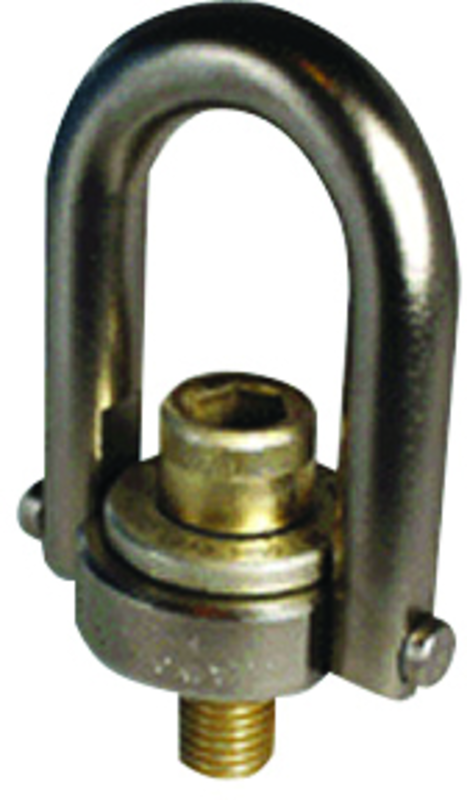

M30 Center Pull Hoist Ring

Item #: SG6723378
Manufacturer: Jergens
Mfg #: 23378

Technical Specifications:
•Base Diameter: 81 •Base Height: 107.4 •Brand Name: Jergens •Diameter: 31.7 •External Radius: 221.7 •Overall Width: 165.1 •Radius: 44.5 •Rating Load: 7000 lbs •Size: M30 x 3.5 •Thread Length: 46.0 •Torque (ft/lbs): 60 •Type: Center-Pull Envirolox ™

Description:
•Full 360 degree Swivel and 180 degree Pivot action •Rated at 5:1 Strength factor •Material: Alloy Steel •Finish: Envirolox TM Electroless Nickel protective coating •U-Bar, bolt, pins, base, washer and bushing are magnetic particle inspected •Washer: Finish: EnviroloxTM Electroless Nickel protective coating •Proof tested to 200% of rated load capacity

Shipping Info:
•Actual Weight - 14.0000
