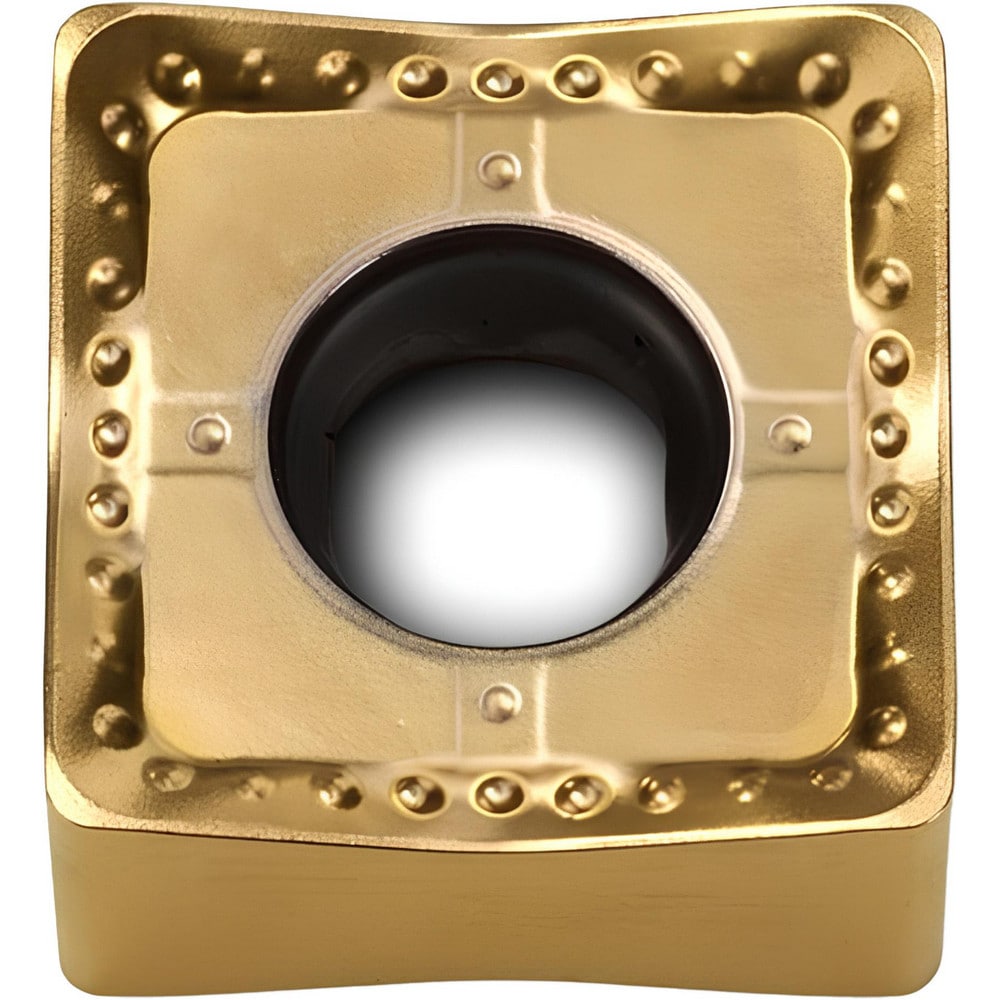

Brand: Ingersoll Cutting Tools / Part #: 5813403

Brand: Ingersoll Cutting Tools / Part #: 5813403


Item #: 32729246
Brand: Ingersoll Cutting Tools
Model #: 5813403

Product Specifications

Insert Style SNGU
Insert Size Code 130608
Insert Material Carbide
Manufacturer Grade IN6515
Inscribed Circle (Decimal Inch) 0.5300
Corner Radius (Inch) 1/32
Insert Hand Neutral
Series SNGU
Coating Process MTCVD
Maximum Depth of Cut (Decimal Inch) 0.4500
Number Of Cutting Edges 8
Insert Shape Square
Rake Negative
Primary Workpiece Material Cast Iron
Primary Workpiece Material Code K
Ansi Code SNGU130608TN I
Rake Angle 0.000
Manufacturers Catalog Number SNGU130608TN I IN6515
Cutter Series Compatibility DJ6T; DJ5T; DQ6T; DQ5T
Chip Breaker None
Cutting Direction Neutral
Shape Square
Insert Holding Method Screw
Coating Classification CVD
Single or Double Sided Insert Double
Coating/Finish TiCN; TiN; Al2O3
Included Angle Degree 90
Width (Decimal Inch - 4 Decimals) 0.5300
Thickness (Decimal Inch - 4 Decimals) 0.2680
Multi-Use Tool Yes
Length (Decimal Inch - 4 Decimals) 0.5300
$25.99
