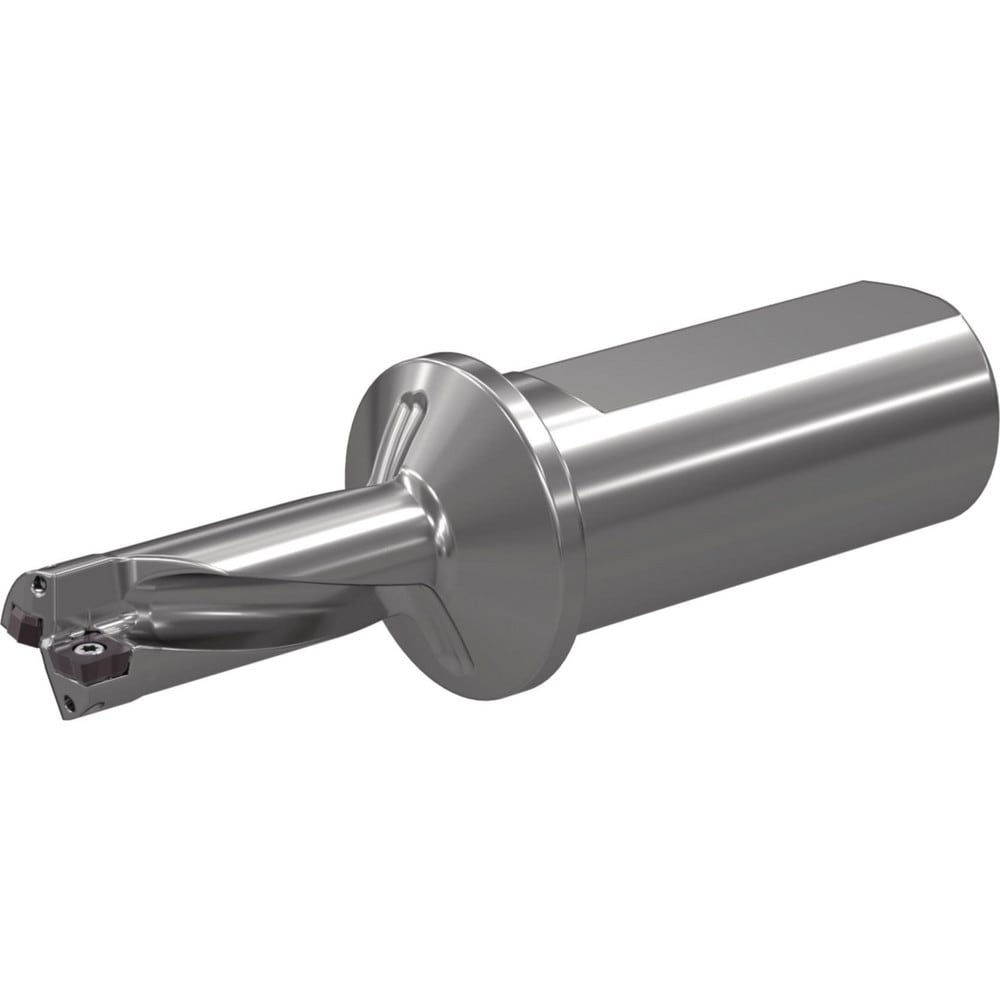

Brand: Widia / Part #: 5578227
Item #: 97074629
Brand: Widia
Model #: 5578227
Product Specifications
| Maximum Drill Depth | 1.2100 in |
| Drill Depth by Diameter Ratio | 2xD |
| Maximum Depth of Cut (Decimal Inch) | 1.2100 |
| Shank Type | Weldon Flat |
| Shank Diameter (Inch) | 3/4 |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Cutting Direction | Right Hand |
| Drill Body Length to Flange (Decimal Inch) | 1.9990 |
| Toolholder Style | TCF |
| Nose Diameter (Decimal Inch - 4 Decimals) | 0.5940 |
| Overall Length (Decimal Inch) | 3.9891 |
| Overall Length | 3.99 |
| Through Coolant | Yes |
| Series | Top Cut 4 |
| Flute Length (Decimal Inch) | 1.8630 |
| Shank Length (Decimal Inch) | 1.9685 |
| Gage Length (Decimal Inch) | 2.0206 |
| Primary Workpiece Material | Non-Ferrous Metal; Stainless Steel; Cast Iron; Super-alloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; K; M; N |
| Coolant Hole Thread Type | NPT |
| Coolant Hole Thread Size (Inch) | 1/8-27 |
| Number of Shank Flats | 1 |
| Flute Type | Variable Index |
| Maximum Cutting Diameter (Decimal Inch) | 0.5940 |
| Number Of Flutes | 2 |
| Projection (Decimal Inch) | 2.0206 |
| Coolant Through | Yes |
