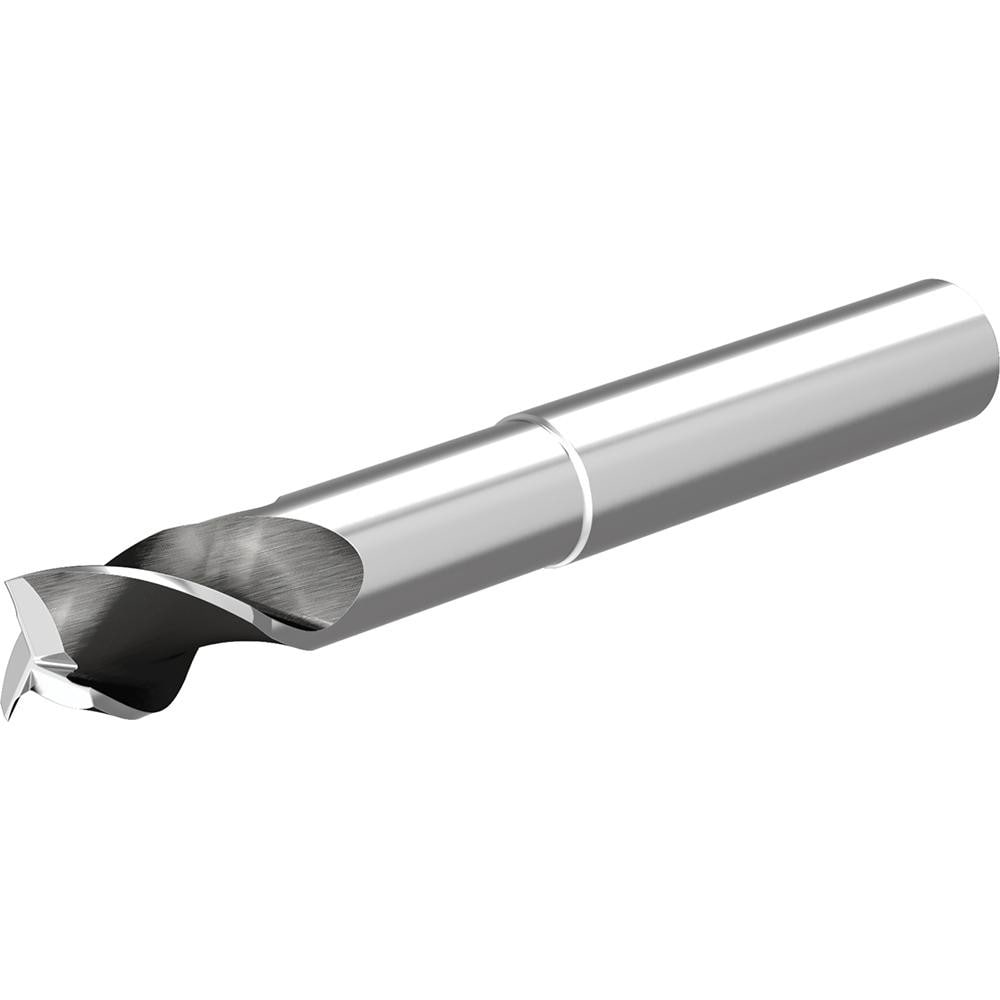

Brand: Widia / Part #: 6859786
Item #: 99149957
Brand: Widia
Model #: 6859786
Product Specifications
| Mill Diameter (Inch) | 5/16 |
| Mill Diameter (Decimal Inch) | 0.3125 |
| Number Of Flutes | 3 |
| Length of Cut (Inch) | 3/8 |
| End Mill Material | Solid Carbide |
| End Type | Single |
| Centercutting | Yes |
| Cutting Direction | Right Hand |
| Shank Diameter (Inch) | 5/16 |
| Finish/Coating | Bright/Uncoated |
| Helix Angle | 37; 39 |
| Chipbreaker | No |
| Variable Helix | Yes |
| Variable Index | No |
| Extended Reach | Yes |
| Shank Type | Straight-Cylindrical |
| Length of Cut (Decimal Inch) | 0.3750 |
| Material Grade | Uncoated |
| Shank Diameter (Decimal Inch) | 0.3125 |
| Overall Length (Decimal Inch) | 3.0000 |
| Flute Direction | Right Hand |
| Flute Type | Helical |
| Helix Style | Variable |
| Length Type | Extended |
| Neck Length (Decimal Inch) | 0.8750 |
| Neck Diameter (Decimal Inch) | 0.2937 |
| Reach Length (Inch) | 1-1/4 |
| Reach Length (Decimal Inch) | 1.2500 |
| Through Coolant | No |
| Series | 3AL9 |
