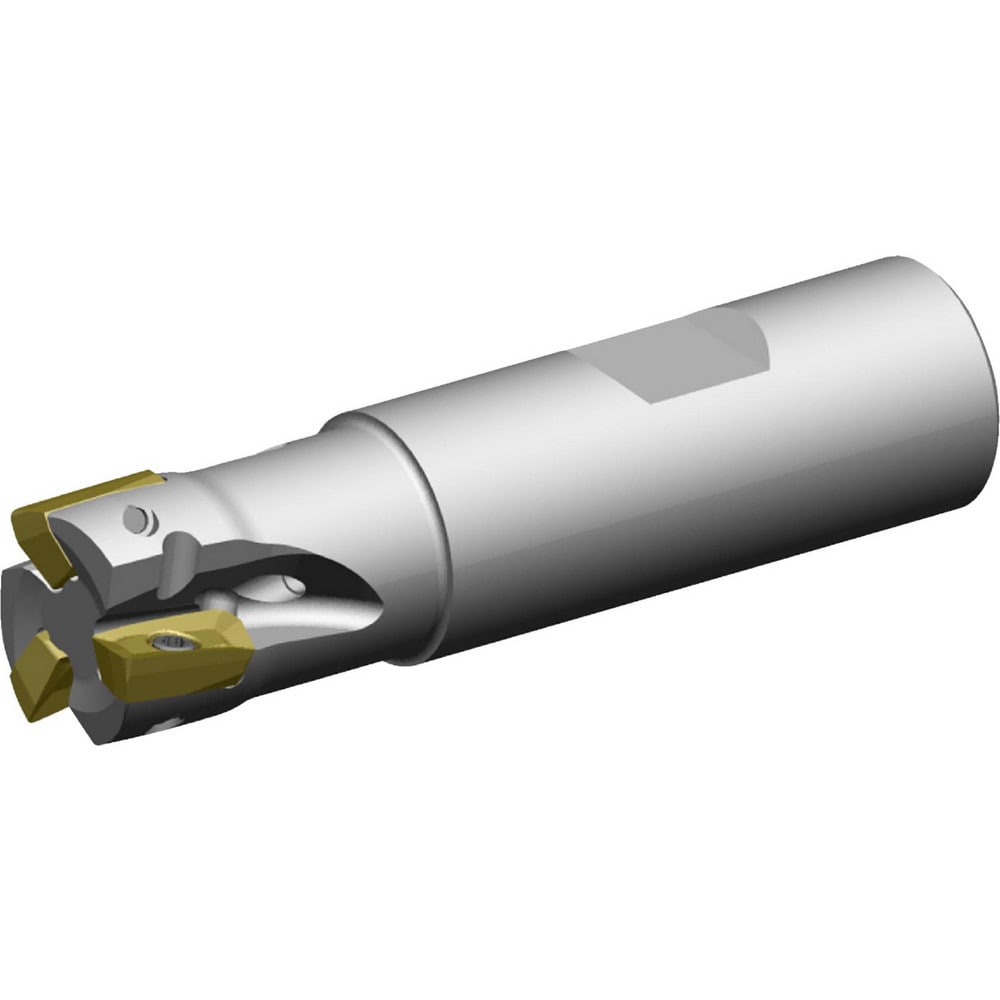

Brand: Widia / Part #: 5416450

Brand: Widia / Part #: 5416450


Item #: 98781636
Brand: Widia
Model #: 5416450

Product Specifications

Minimum Cutting Diameter (Decimal Inch) 1.0000
Minimum Cutting Diameter (Inch) 1
Maximum Cutting Diameter (Decimal Inch) 1.0000
Maximum Cutting Diameter (Inch) 1
Maximum Depth of Cut (Decimal Inch) 1.2201
Cutter Style VSM
Shank Type Weldon Flat
Shank Diameter (Decimal Inch) 1.0000
Shank Diameter (Inch) 1
Maximum Ramping Angle 5.1 ?
Insert Holding Method Screw
Shank Taper Size None
Overall Length (Decimal Inch) 3.5000
Tool Material Steel
Series VSM11
Flute Type Spiral
Lead Angle 90
Shank Length (Decimal Inch) 2.2800
Head Length (Decimal Inch) 1.2200
Maximum RPM 29900.000
Tool Application Pocketing; Milling; Ramping; Slotting
Tool Performance General Purpose
Primary Workpiece Material Universal
End Mill Type Shoulder Square End Mill
Coolant Hole Diameter (Decimal Inch) 0.1970
Rake Negative (Radial); Positive (Axial)
Complete Insert Compatibility XD.T11..
Insert Compatibility XD.T11..
Hand of Holder Right Hand
Rake Angle -6.60 ? (Radial);8.00 ? (Axial)
Multi-Use Tool Yes
ISO Number VSM11D100Z04W100XD11
Manufacturers Catalog Number VSM11D100Z04W100XD11
Number Of Flutes 4
Usable Length (Decimal Inch) 1.2200
Number Of Cutter Inserts 4
Coolant Through Yes
$276.39
