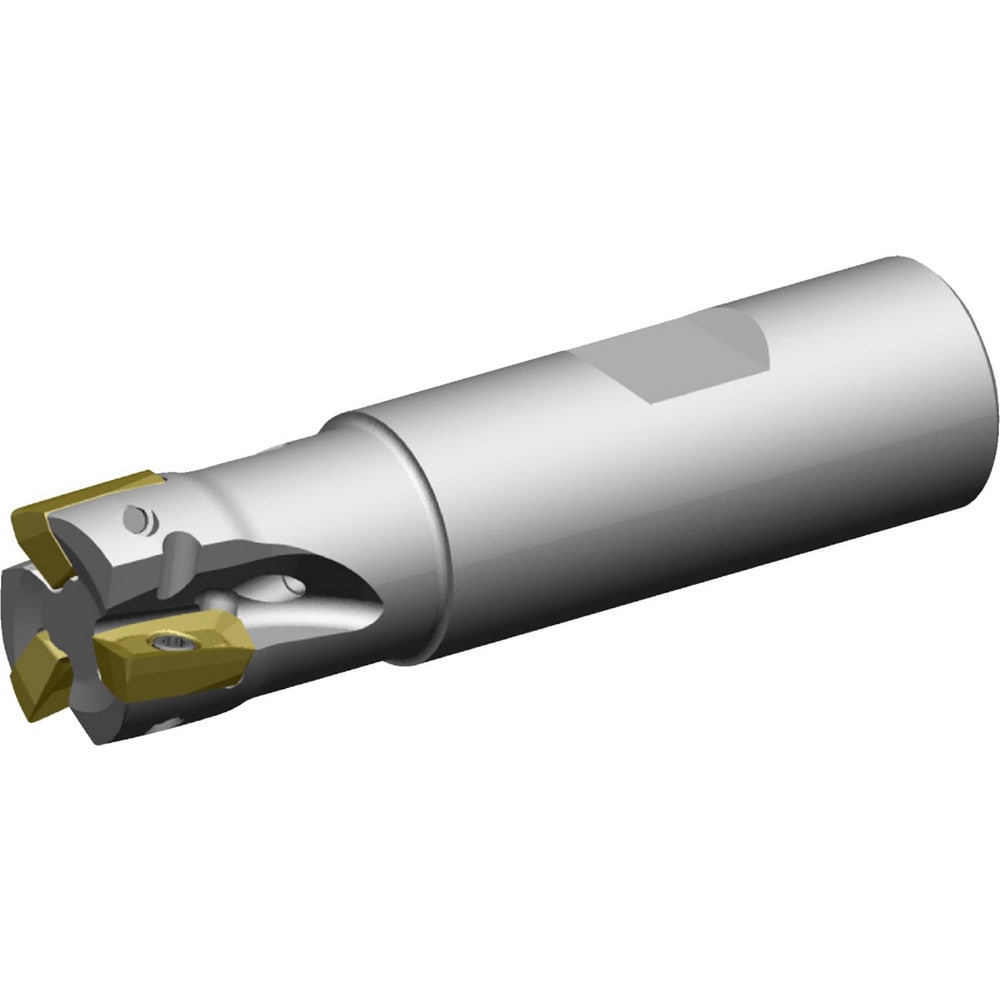

Brand: Widia / Part #: 5416480

Brand: Widia / Part #: 5416480


Item #: 98775927
Brand: Widia
Model #: 5416480

Product Specifications

Minimum Cutting Diameter (mm) 25.00
Maximum Cutting Diameter (mm) 25.00
Maximum Depth of Cut (mm) 31.00
Cutter Style VSM
Shank Type Weldon Flat
Shank Diameter (mm) 25.0000
Maximum Ramping Angle 5.3 ?
Insert Holding Method Screw
Shank Taper Size None
Overall Length (mm) 88.0000
Tool Material Steel
Series VSM11
Flute Type Spiral
Lead Angle 90
Shank Length (mm) 57.000
Head Length (mm) 31.00
Maximum RPM 30200.000
Tool Application Pocketing; Milling; Ramping; Slotting
Tool Performance General Purpose
Primary Workpiece Material Universal
End Mill Type Shoulder Square End Mill
Coolant Hole Diameter (mm) 5.00
Rake Negative (Radial); Positive (Axial)
Complete Insert Compatibility XD.T11..
Insert Compatibility XD.T11..
Hand of Holder Right Hand
Rake Angle -6.92 ? (Radial);8.00 ? (Axial)
Multi-Use Tool Yes
ISO Number VSM11D025Z04B25XD11
Manufacturers Catalog Number VSM11D025Z04B25XD11
Usable Length (mm) 31.000
Number Of Flutes 4
Number Of Cutter Inserts 4
Coolant Through Yes
$276.39
