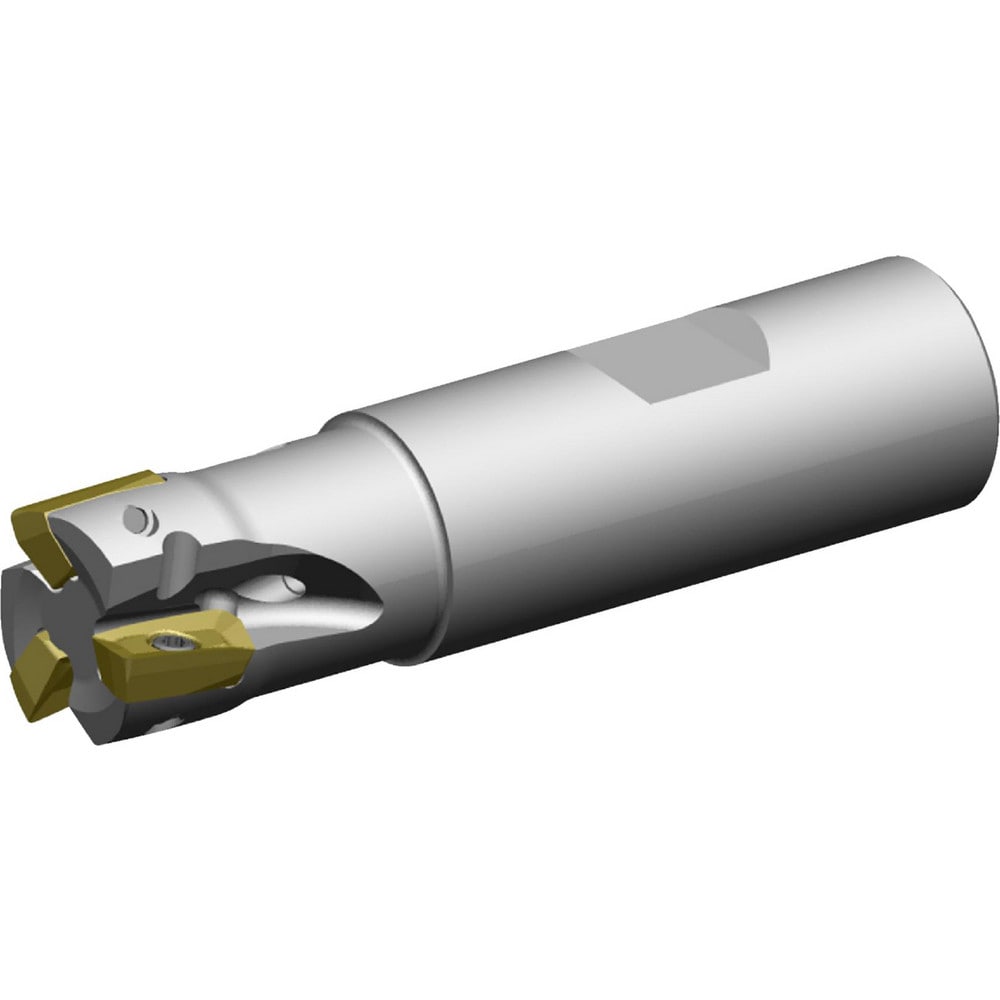

Brand: Widia / Part #: 5416451

Brand: Widia / Part #: 5416451


Item #: 98781560
Brand: Widia
Model #: 5416451

Product Specifications

Minimum Cutting Diameter (Decimal Inch) 1.2500
Minimum Cutting Diameter (Inch) 1-1/4
Maximum Cutting Diameter (Decimal Inch) 1.2500
Maximum Cutting Diameter (Inch) 1-1/4
Maximum Depth of Cut (Decimal Inch) 1.7201
Cutter Style VSM
Shank Type Weldon Flat
Shank Diameter (Decimal Inch) 1.2500
Shank Diameter (Inch) 1-1/4
Maximum Ramping Angle 3.6 ?
Insert Holding Method Screw
Shank Taper Size None
Overall Length (Decimal Inch) 4.0000
Tool Material Steel
Series VSM11
Flute Type Spiral
Lead Angle 90
Shank Length (Decimal Inch) 2.2800
Head Length (Decimal Inch) 1.7200
Maximum RPM 25900.000
Tool Application Pocketing; Milling; Ramping; Slotting
Tool Performance General Purpose
Primary Workpiece Material Universal
End Mill Type Shoulder Square End Mill
Coolant Hole Diameter (Decimal Inch) 0.2360
Rake Negative (Radial); Positive (Axial)
Complete Insert Compatibility XD.T11..
Insert Compatibility XD.T11..
Hand of Holder Right Hand
Rake Angle -6.72 ? (Radial);9.60 ? (Axial)
Multi-Use Tool Yes
ISO Number VSM11D125Z04W125XD11
Manufacturers Catalog Number VSM11D125Z04W125XD11
Number Of Flutes 4
Usable Length (Decimal Inch) 1.7200
Number Of Cutter Inserts 4
Coolant Through Yes
$287.67
