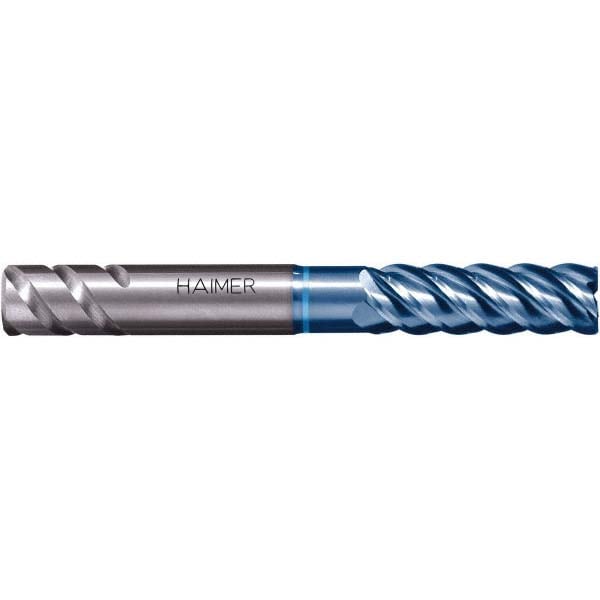

Brand: HAIMER / Part #: F1005LLL1400CAA

Brand: HAIMER / Part #: F1005LLL1400CAA


Item #: 52175502
Brand: HAIMER
Model #: F1005LLL1400CAA

Product Specifications

Mill Diameter (mm) 14.00
Chamfer Width (mm) 0.40
Chamfer Width (Decimal Inch) 0.0157
Coating/Finish AlTiN
End Mill Material Solid Carbide
Number Of Flutes 5
Single Or Double End Single
Overall Length (mm) 105.00
Length of Cut (mm) 42.00
Cutting Direction Right Hand
Mill Diameter (Decimal Inch) 0.5512
Flute Direction Right Hand
End Type Corner Chamfer
Chamfer Angle 45
Length Of Cut (Decimal Inch - 4 Decimals) 1.6535
Extended Reach Yes
Variable Index Yes
Variable Helix Yes
Shank Diameter (mm) 14.00
Neck Diameter (mm) 13.30
Neck Diameter (Decimal Inch) 0.5236
Reach Length (Decimal Inch) 2.2047
Reach Length (mm) 56.00
Minimum Helix Angle 46.00
Maximum Helix Angle 47.00
Overall Length Tolerance +0.05 to -0.05 mm
Material Grade Submicron
TIR Maximum (Decimal Inch) 0.0002
