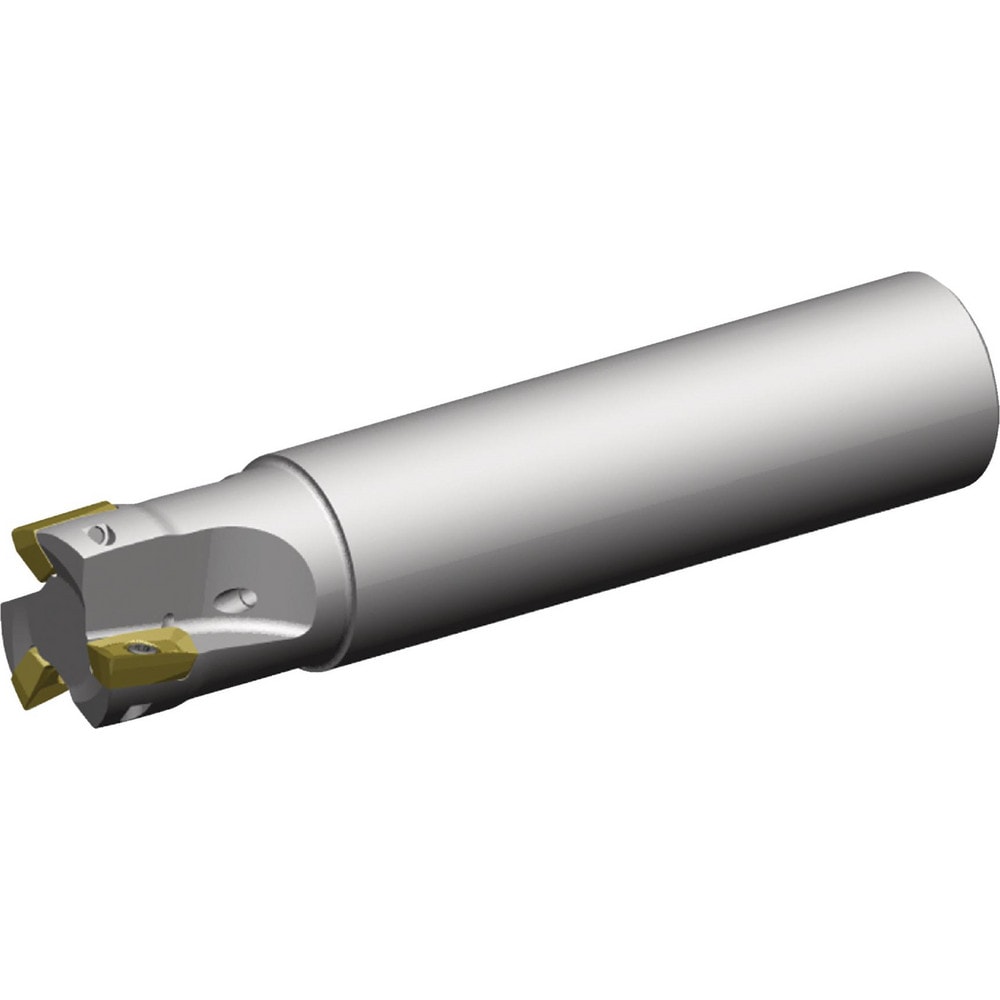

Brand: Widia / Part #: 5416727
Item #: 97480479
Brand: Widia
Model #: 5416727
Product Specifications
| Minimum Cutting Diameter (Decimal Inch) | 0.7500 |
| Minimum Cutting Diameter (Inch) | 3/4 |
| Maximum Cutting Diameter (Decimal Inch) | 0.7500 |
| Maximum Cutting Diameter (Inch) | 3/4 |
| Maximum Depth of Cut (Decimal Inch) | 1.6098 |
| Maximum Depth of Cut (Inch) | 1-39/64 |
| Cutter Style | VSM |
| Shank Type | Cylindrical |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Shank Diameter (Inch) | 3/4 |
| Maximum Ramping Angle | 8.6 ? |
| Insert Holding Method | Screw |
| Shank Taper Size | None |
| Overall Length (Decimal Inch) | 6.7000 |
| Tool Material | Steel |
| Series | VSM11 |
| Flute Type | Spiral |
| Lead Angle | 90 |
| Shank Length (Decimal Inch) | 5.0900 |
| Head Length (Inch) | 1-39/64 |
| Head Length (Decimal Inch) | 1.6100 |
| Maximum RPM | 36300.000 |
| Tool Application | Pocketing; Milling; Ramping; Slotting |
| Tool Performance | General Purpose |
| Primary Workpiece Material | Universal |
| End Mill Type | Shoulder Square End Mill |
| Coolant Hole Diameter (Decimal Inch) | 0.1970 |
| Rake | Negative (Radial); Positive (Axial) |
| Complete Insert Compatibility | XD.T11.. |
| Insert Compatibility | XD.T11.. |
| Hand of Holder | Right Hand |
| Rake Angle | -9.15 ? (Radial);7.00 ? (Axial) |
| Multi-Use Tool | Yes |
| ISO Number | VSM11D075Z03C075XD11L670 |
| Manufacturers Catalog Number | VSM11D075Z03C075XD11L670 |
| Number Of Flutes | 3 |
| Usable Length (Decimal Inch) | 1.6100 |
| Number Of Cutter Inserts | 3 |
| Coolant Through | Yes |
