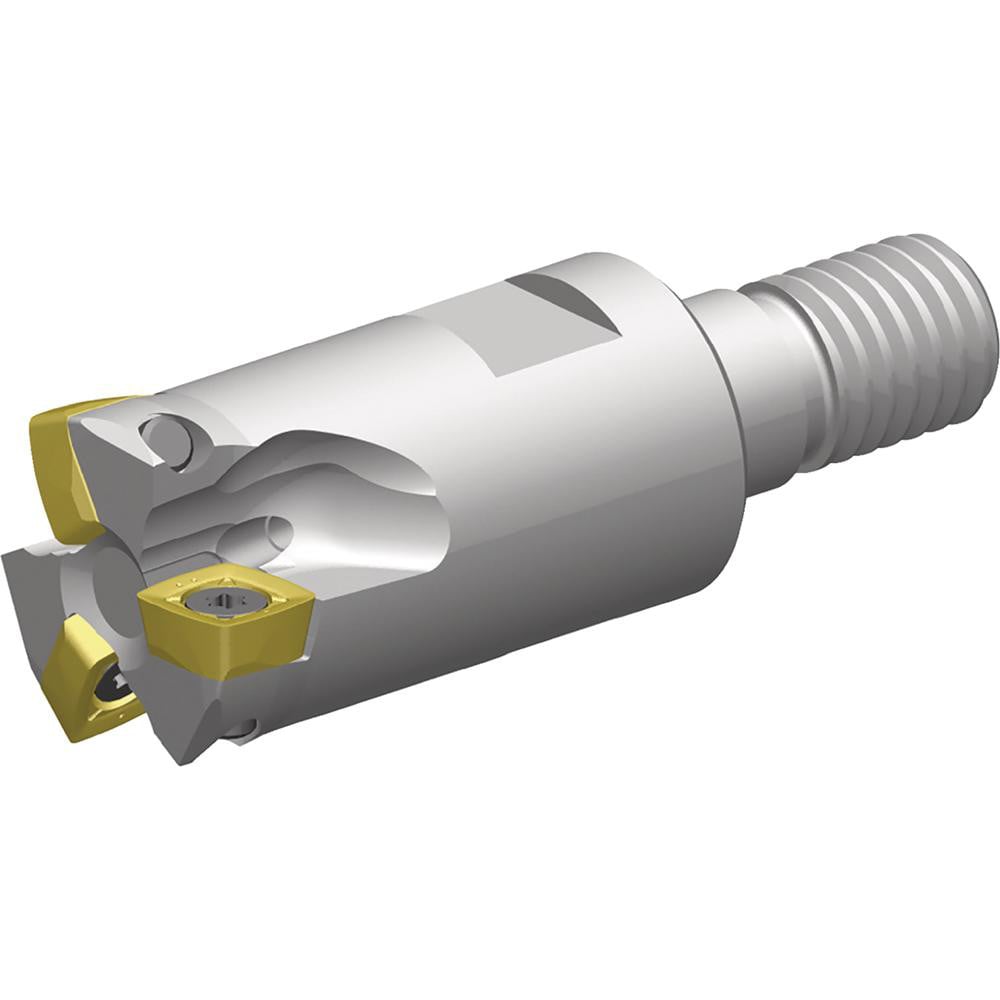

Brand: Widia / Part #: 6597151
Item #: 83081539
Brand: Widia
Model #: 6597151
Product Specifications
| Minimum Cutting Diameter (mm) | 10.70 |
| Maximum Cutting Diameter (mm) | 20.00 |
| Maximum Depth of Cut (mm) | 0.90 |
| Toolholder Style | VXF |
| Shank Type | Modular Connection |
| Shank Diameter (Decimal Inch) | 0.7087 |
| Shank Diameter (mm) | 0.70 |
| Maximum Ramping Angle | 3.40 |
| Compatible Insert Style | XPPT |
| Compatible Insert Size Code | 0703.. |
| Insert Holding Method | Screw |
| Number Of Cutter Inserts | 3 |
| Overall Length (Decimal Inch) | 55.0000 |
| Overall Length (Inch) | 55 |
| Overall Length (mm) | 55.00 |
| Series | VXF-07 |
| Flute Type | Straight |
| Maximum RPM | 57000 |
| Modular Connection Size | M10 |
| Head Length (mm) | 35.00 |
| Functional Length (mm) | 35.00 |
| Projection (mm) | 35.00 |
| Tool Application | Plunging; Milling; Ramping |
| Tool Performance | High-Performance |
| Primary Workpiece Material | Universal |
| Number Of Flutes | 3 |
| Coolant Through | Yes |
