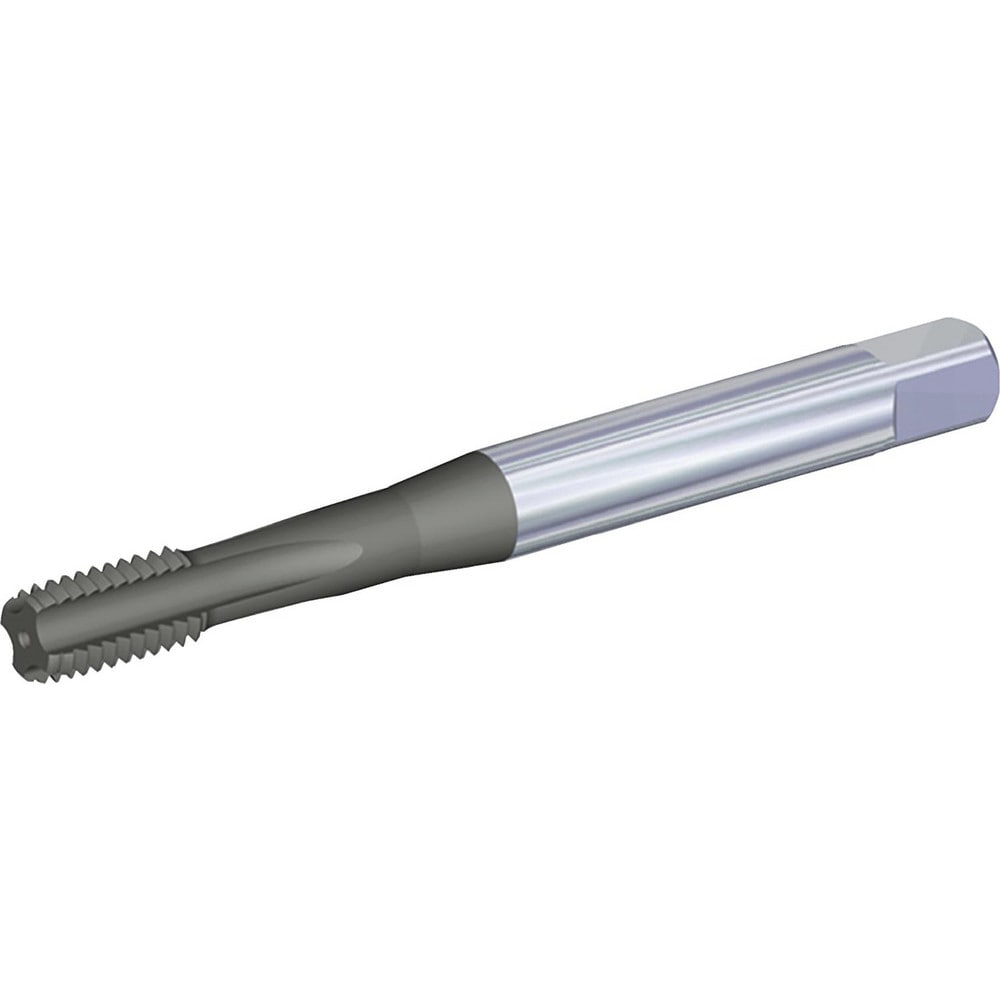

Brand: Widia / Part #: 5520834
Item #: 84246768
Brand: Widia
Model #: 5520834
Product Specifications
| Tap Type | Machine |
| Thread Size (mm) | M12x1.25 |
| Class Of Fit | 6HX |
| Number Of Flutes | 4 |
| Chamfer | Bottoming |
| Material | High Speed Steel |
| Coating/Finish | TiCN |
| Threads per Inch | 20.3200 |
| Thread Direction | Right Hand |
| Coolant Through | No |
| Thread Standard | Metric |
| Overall Length (mm) | 100.00 |
| Thread Pitch (mm) | 1.25 |
| Thread Length (mm) | 15.00 |
| Material Grade | WK12PG |
| Thread Depth (mm) | 15.00 |
| Application | Metal |
| Shank Diameter (mm) | 9.00 |
| Tapping Depth (mm) | 39.00 |
| Square Length (mm) | 10.00 |
| Square Size (mm) | 6.93 |
| Material Application | Cast Iron |
| Series | GX35 |
| Shank Length (mm) | 61.00 |
| Shank Length (Decimal Inch) | 3.3465 |
