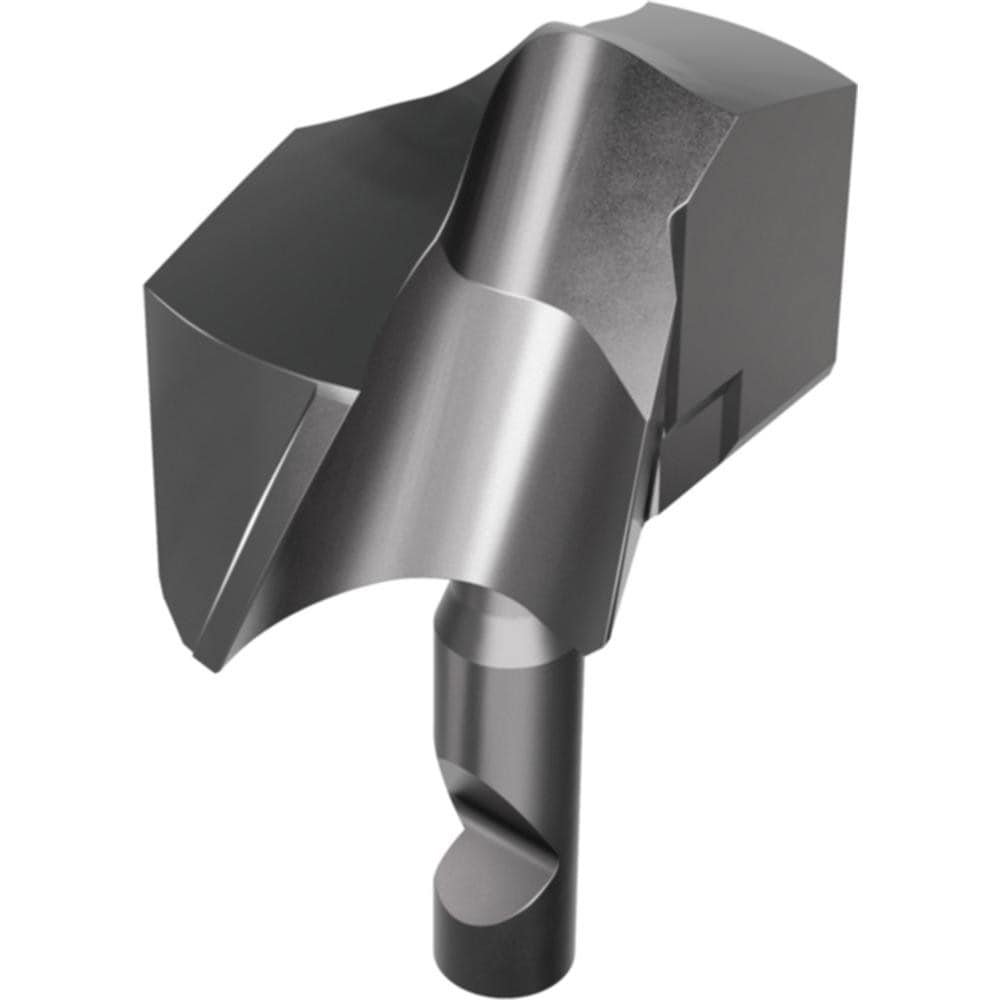

Brand: Widia / Part #: 6568874
Item #: 02414217
Brand: Widia
Model #: 6568874
Product Specifications
| Maximum Drill Diameter (mm) | 28.00 |
| Point Angle | 140.00 |
| Diameter (mm) | 28.0000 |
| Tip Material | Solid Carbide |
| Manufacturer Grade | WP40PD |
| Material Grade | 11% Cobalt |
| Cutting Direction | Right Hand |
| Series | TDMX Drill |
| Coating Process | PVD |
| Insert Geometry | PK |
| Insert Seat Size | M |
| Primary Workpiece Material | Cast Iron; Steel |
| Primary Workpiece Material Code | P; K |
| Secondary Workpiece Material | Stainless Steel |
| Secondary Workpiece Material Code | M |
| Height (mm) | 40.9000 |
| Head Length (mm) | 40.90 |
| Cutting Diameter (mm) | 28.00 |
| Drill Point Angle | 140 |
| Insert Holding Method | Screw |
| Overall Length (mm) | 40.9000 |
| ISO Number | TDMX28000PKM |
| Coolant Through | No |
| Overall Length/Projection (mm) | 40.90 |
| Minimum Cutting Diameter (mm) | 28.00 |
| Coating Classification | PVD |
| Applications | Drilling |
| Coating/Finish | TiN; TiAlN |
| Included Angle Degree | 140 |
| Number Of Flutes | 2 |
