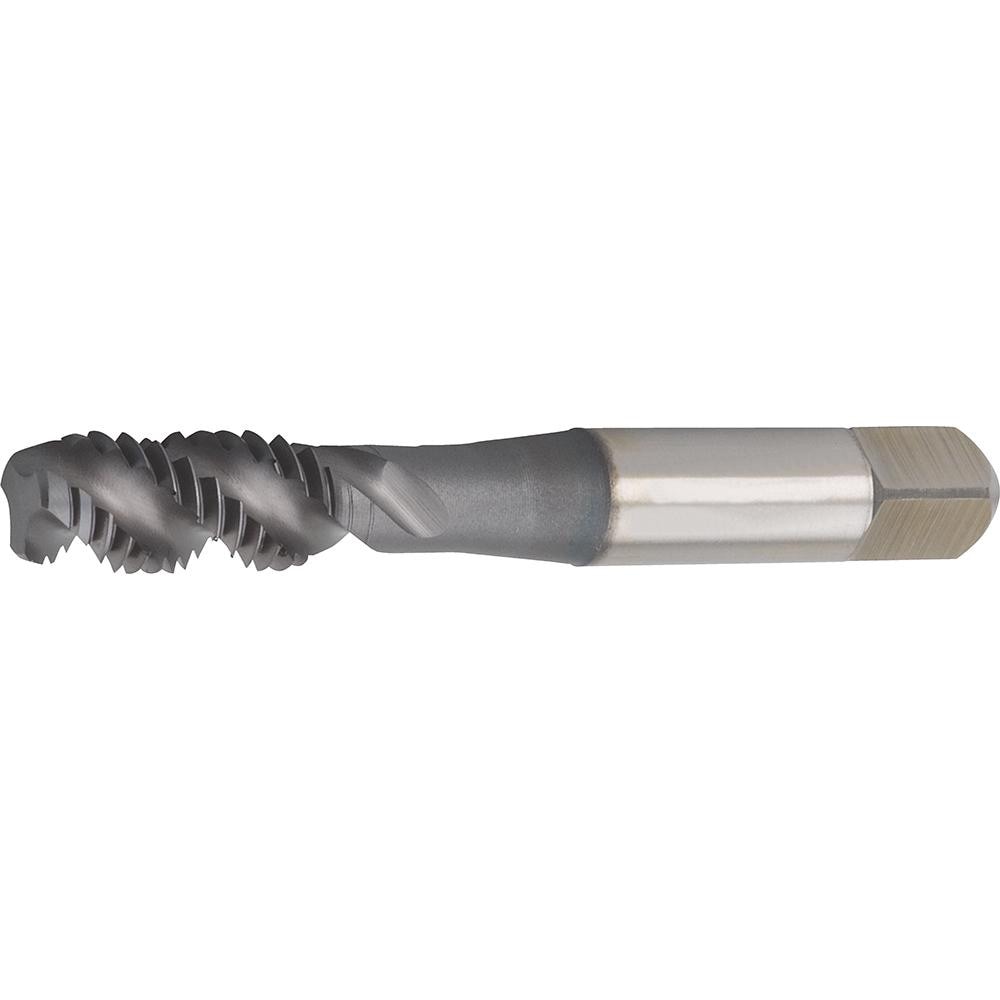

Brand: Widia / Part #: 6140524
Item #: 97563480
Brand: Widia
Model #: 6140524
Product Specifications
| Thread Size (mm) | M18x1.5 |
| Chamfer | Modified Bottoming |
| Thread Limit | D6 |
| Class Of Fit | 6H |
| Number Of Flutes | 4 |
| Material | High Speed Steel |
| Threads per Inch | 17 |
| Thread Direction | Right Hand |
| Flute Direction | Right Hand |
| Coating/Finish | Black Oxide |
| Thread Depth (mm) | 48.00 |
| Coolant Through | No |
| Thread Length (mm) | 27.70 |
| Overall Length (mm) | 102.4000 |
| Thread Pitch (mm) | 1.50 |
| Thread Standard | Metric |
| Material Grade | WP49EG |
| Shank Diameter (mm) | 13.7700 |
| Square Length (mm) | 16.00 |
| Square Size (mm) | 10.24 |
| Material Application | Stainless Steel; Cast Iron; Steel |
| Series | VTSFT-TC |
