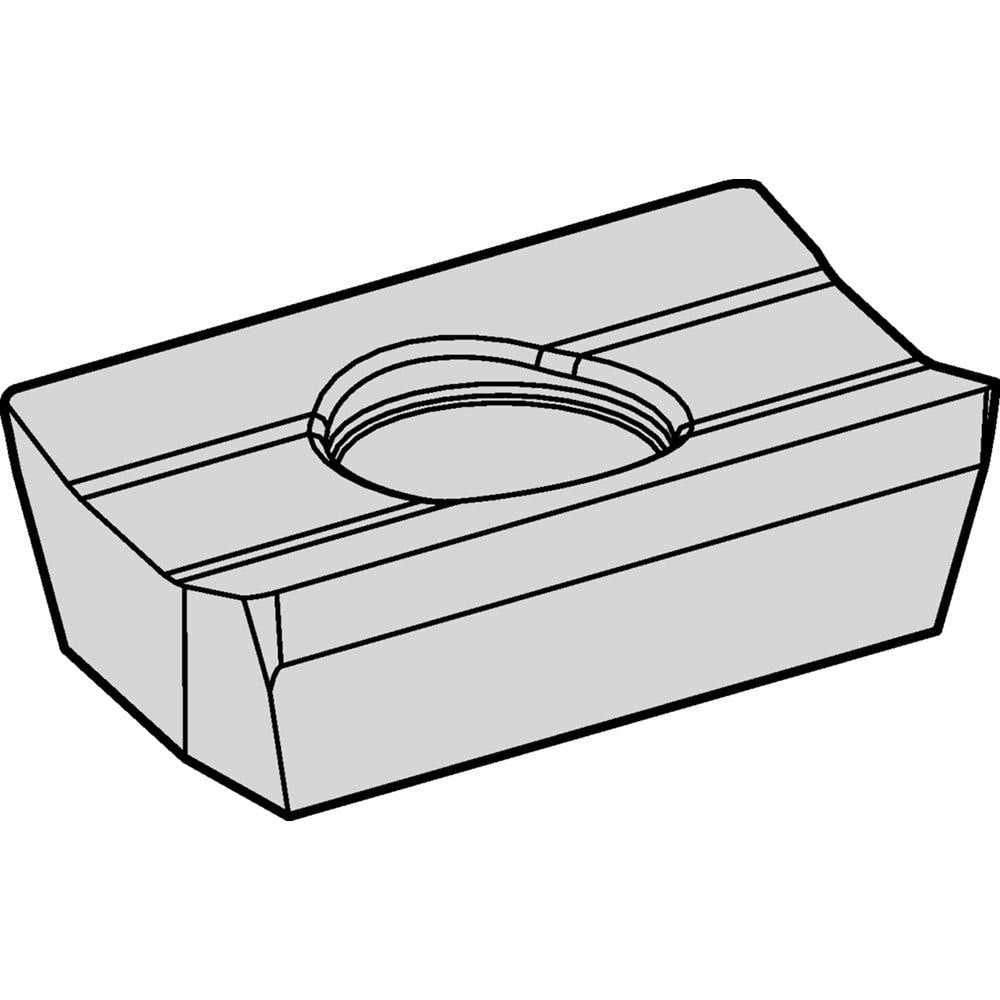

Brand: Widia / Part #: 5645210
Item #: 94484177
Brand: Widia
Model #: 5645210
Product Specifications
| Insert Style | XPHT |
| Insert Size Code | 1604 |
| Insert Size | 33 |
| Insert Material | Carbide |
| Width (Inch) | 3/8 |
| Manufacturer Grade | WP40PM |
| Length (Inch) | 5/8 |
| Thickness (Inch) | 3/16 |
| Inscribed Circle (Inch) | 3/8 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Corner Radius (Decimal Inch) | 0.0781 |
| Corner Radius (Inch) | 5/64 |
| Insert Hand | Right Hand |
| Relief Angle | 11.000 |
| Series | M680 |
| Coating Process | PVD |
| Hole Diameter (Decimal Inch) | 0.1748 |
| Maximum Depth of Cut (Decimal Inch) | 0.6169 |
| Number Of Cutting Edges | 2 |
| Insert Shape | Parallelogram |
| Rake | Positive |
| Primary Workpiece Material | Stainless Steel; Super-alloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; M |
| Ansi Code | XPHT335 |
| Iso Code | XPHT160420 |
| Manufacturers Catalog Number | XPHT335 |
| Cutter Series Compatibility | M680 XP1604 IN |
| Chip Breaker | None |
| Cutting Direction | Right Hand |
| Material Application | High-Temperature Alloy; Stainless Steel; Steel |
| Shape | Parallelogram |
| Insert Holding Method | Screw |
| Coating Classification | PVD |
| Single or Double Sided Insert | Single |
| Coating/Finish | AlCrN; TiAlN |
| Included Angle Degree | 80 |
| Width (Decimal Inch - 4 Decimals) | 0.3750 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1875 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.6250 |
