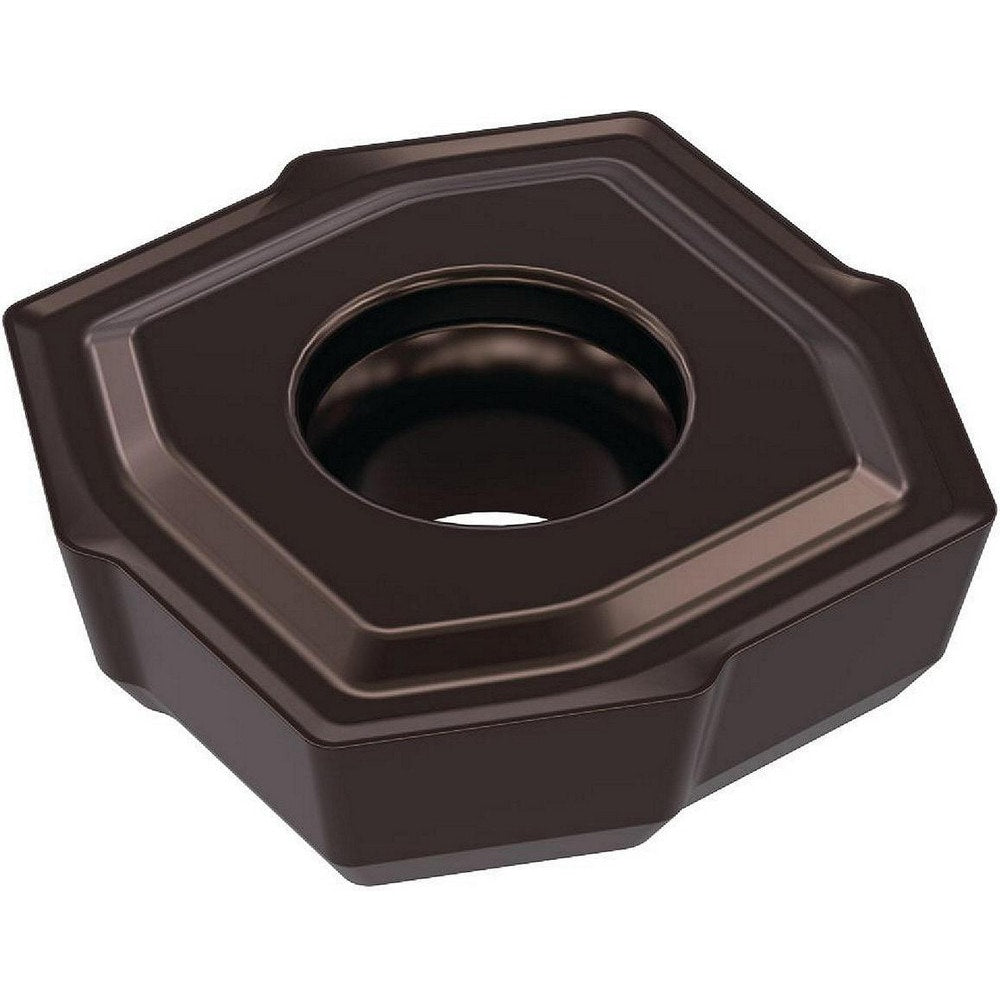

Brand: Widia / Part #: 5538607
Item #: 95483038
Brand: Widia
Model #: 5538607
Product Specifications
| Insert Style | TCF |
| Insert Size Code | 120405 |
| Insert Material | Carbide |
| Manufacturer Grade | WU40PH |
| Inscribed Circle (Decimal Inch) | 0.4725 |
| Cutting Direction | Neutral |
| Corner Radius (Decimal Inch) | 0.0197 |
| Chipbreaker | V36 |
| Series | TCF |
| Coating Process | PVD |
| Shape | Irregular |
| Hole Diameter (Decimal Inch) | 0.1339 |
| Number Of Cutting Edges | 4 |
| Relief Angle | 11.000 |
| Rake | Positive |
| Primary Workpiece Material | Hi-Temp Alloys; Steel |
| Primary Workpiece Material Code | P; S |
| Secondary Workpiece Material | Stainless Steel |
| Secondary Workpiece Material Code | M |
| Ansi Code | TCF120405ECV36 |
| Iso Code | TCF120405ECV36 |
| Drill Style | TCF |
| Insert Size | 12 |
| Coating Classification | PVD |
| Width (Decimal Inch - 4 Decimals) | 0.3858 |
| Length (Decimal Inch - 4 Decimals) | 0.3858 |
| Included Angle Degree | 90 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1417 |
| Coating/Finish | TiN; TiAlN |
