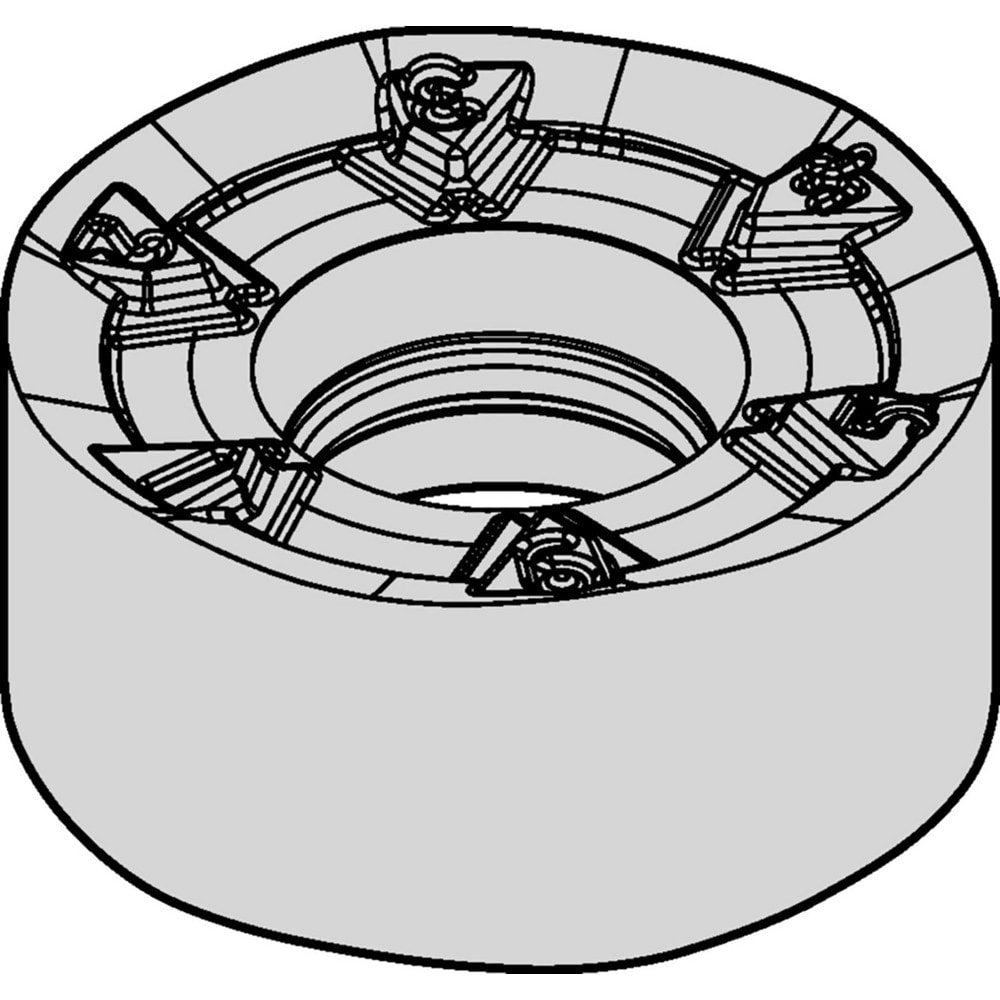

Brand: Widia / Part #: 5276470
Item #: 95223541
Brand: Widia
Model #: 5276470
Product Specifications
| Insert Style | RNPJ |
| Insert Size Code | 1605 |
| Insert Size | 16 |
| Insert Material | Carbide |
| Manufacturer Grade | WP35CM |
| Inscribed Circle (Decimal Inch) | 0.6299 |
| Inscribed Circle (mm) | 16.00 |
| Corner Radius (Decimal Inch) | 0.3150 |
| Corner Radius (mm) | 8.00 |
| Insert Hand | Neutral |
| Relief Angle | 0.000 |
| Series | M200 |
| Coating Process | CVD |
| Hole Diameter (Decimal Inch) | 0.2283 |
| Maximum Depth of Cut (Decimal Inch) | 0.3150 |
| Number Of Cutting Edges | 2 |
| Insert Shape | Round |
| Rake | Negative |
| Primary Workpiece Material | Stainless Steel; Cast Iron; Steel |
| Primary Workpiece Material Code | P; K; M |
| Secondary Workpiece Material | Super-alloys & Titanium |
| Secondary Workpiece Material Code | S |
| Ansi Code | RNPJ1605M0SMM |
| Iso Code | RNPJ1605M0SMM |
| Manufacturers Catalog Number | RNPJ1605M0SMM |
| Cutter Series Compatibility | M200 RN16 CT |
| Chip Breaker | MM |
| Cutting Direction | Neutral |
| Material Application | High-Temperature Alloy; Stainless Steel; Steel |
| Shape | Round |
| Length of Cut (mm) | 8.0000 |
| Insert Holding Method | Screw |
| Coating Classification | CVD |
| Single or Double Sided Insert | Double |
| Coating/Finish | TiCN; TiN; Al2O3 |
| Length | 16.00 |
| Width (Decimal Inch - 4 Decimals) | 0.6299 |
| Width (Mm - 2 Decimals) | 16.00 |
| Thickness (Decimal Inch - 4 Decimals) | 0.2173 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.6299 |
