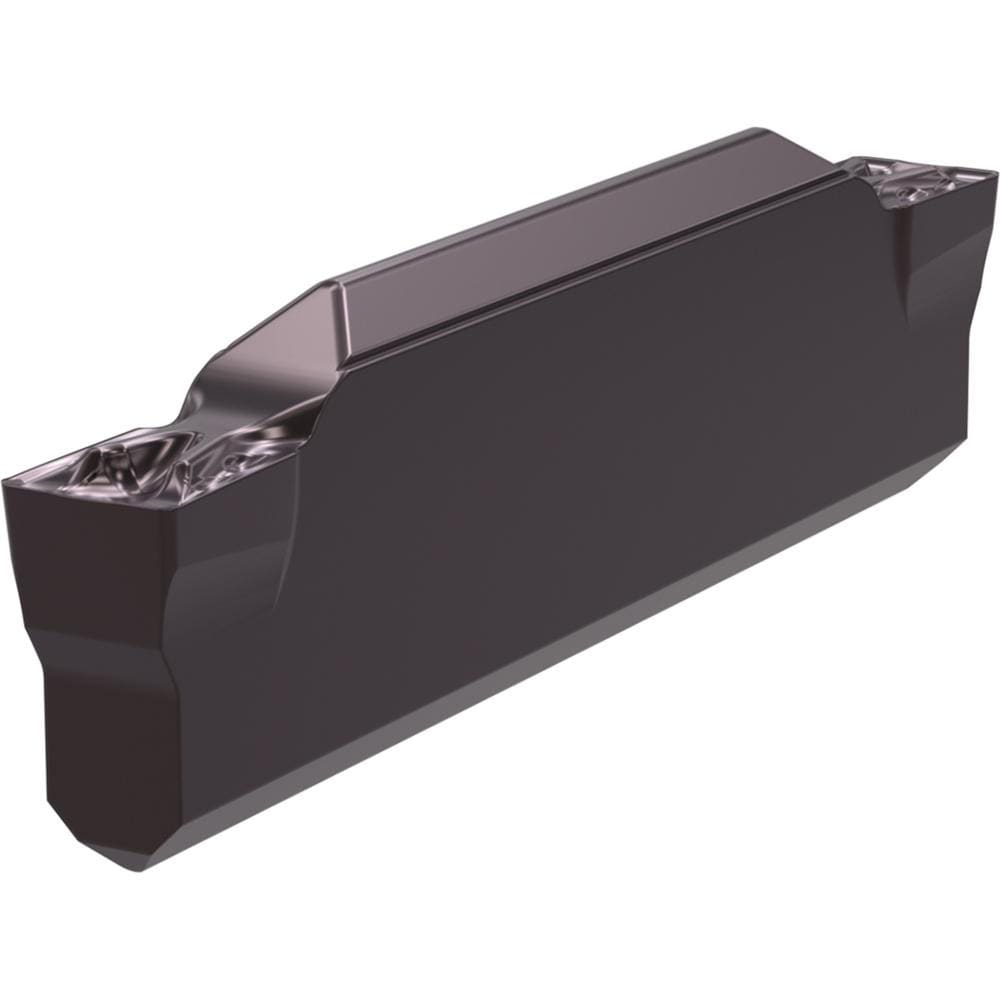

Brand: Widia / Part #: 4113580
Item #: 94506441
Brand: Widia
Model #: 4113580
Product Specifications
| Insert Style | WMT |
| Insert Size Code | 4 |
| Insert Size | 4 |
| Insert Material | Carbide |
| Manufacturer Grade | WU25PT |
| Cutting Width (Decimal Inch) | 0.1626 |
| Maximum Depth of Cut (Decimal Inch) | 1.0050 |
| Insert Holding Method | Clamp |
| Insert Hand | Neutral |
| Corner Radius (Decimal Inch) | 0.0240 |
| Lead Angle | 5.000 |
| Rake | Positive |
| Multi-use Tool | No |
| Cutting Tool Application | Grooving |
| Series | WMT |
| Coating Process | PVD |
| Overall Length (Decimal Inch) | 1.0050 |
| Primary Workpiece Material | Super-alloys & Titanium |
| Primary Workpiece Material Code | S |
| Secondary Workpiece Material | Non-Ferrous Metal; Stainless Steel; Cast Iron; Steel |
| Secondary Workpiece Material Code | P; H; K; M; N |
| Ansi Code | WMTS405M4U06PT |
| Iso Code | WMTS405M4U06PT |
| Relief Angle | 5 |
| Maximum Corner Radius (Decimal Inch) | 0.0240 |
| Manufacturers Catalog Number | WMTS405M4U06PT |
| Insert Thickness (Decimal Inch) | 0.1820 |
| Minimum Groove Width (mm) | 4.13 |
| Type | WMT Groove Cutoff Turn Insert |
| Maximum Groove Width (mm) | 4.13 |
| Minimum Insert Width (mm) | 3.15 |
| Chip Breaker | PT |
| Insert Seat Size | 4 |
| Style | WMT Groove Cutoff Turn Insert |
| Insert Height (Decimal Inch) | 0.1820 |
| Full Radius | No |
| Gage Diameter (Decimal Inch) | 0.0938 |
| Coating Classification | PVD |
| Hole Diameter (Decimal Inch) | 0.0000 |
| Gage Diameter (Inch) | 3/32 |
| Overall Width (Decimal Inch - 4 Decimals) | 0.1240 |
| Coating/Finish | TiAIN |
| Number Of Cutting Edges | 2 |
| Single Or Double End | Double |
| Groove Width (mm) | 4.13 |
| For Use With | Grooving |
