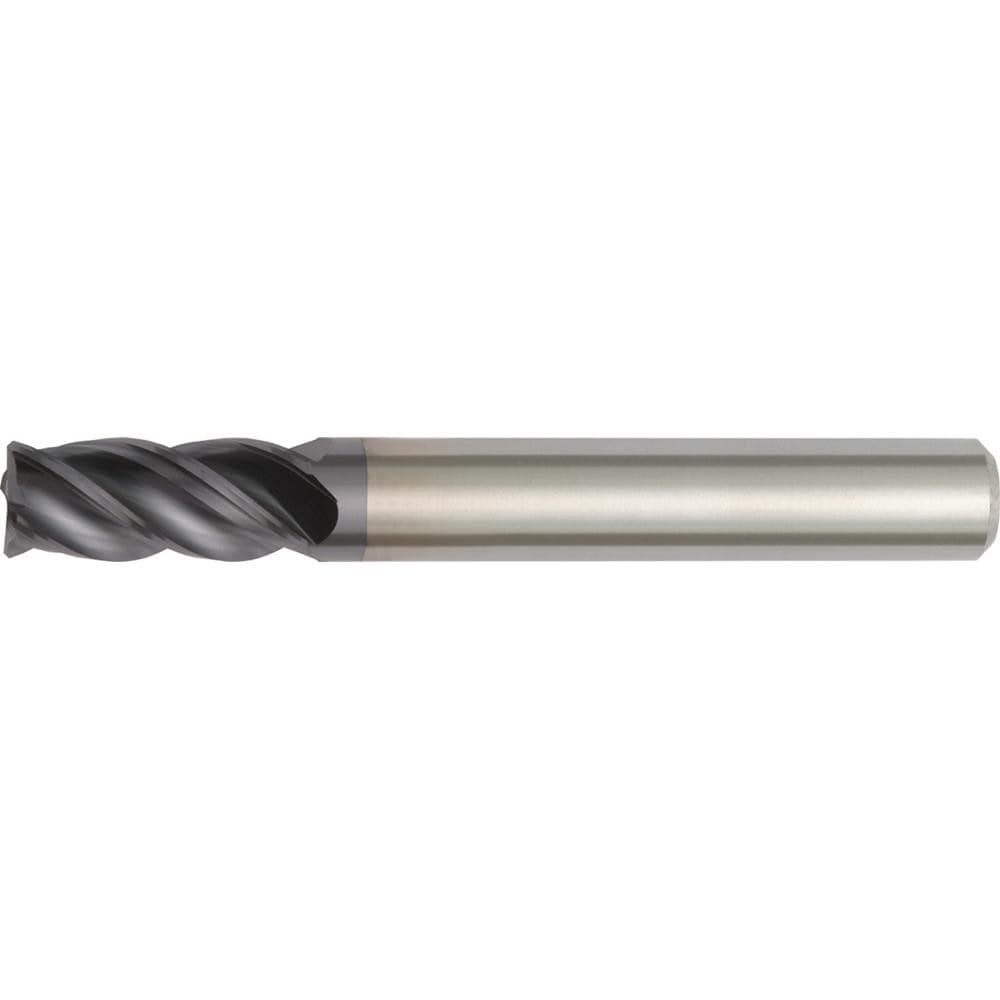

Brand: Widia / Part #: 3110264
Item #: 69353654
Brand: Widia
Model #: 3110264
Product Specifications
| Corner Radius (Decimal Inch) | 0.0150 |
| Coating/Finish | TiAlN |
| End Mill Material | Solid Carbide |
| Number Of Flutes | 4 |
| Single Or Double End | Single |
| Overall Length (Inch) | 2 |
| Cutting Direction | Right Hand |
| Coolant Through | No |
| Pitch | Normal |
| Mill Diameter (Decimal Inch) | 0.1250 |
| Flute Direction | Right Hand |
| Helix Angle | 38 |
| Overall Length (Decimal Inch) | 2.0000 |
| Chipbreaker | No |
| End Type | Centercutting |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.5000 |
| Length Type | Extra Long |
| Flute Type | Helical |
| Extended Reach | No |
| Shank Type | Straight-Cylindrical |
| Centercutting | Yes |
| Variable Index | Yes |
| Variable Helix | No |
| Material Removal Type | Roughing & Finishing |
| Shank Diameter (Decimal Inch) | 0.1250 |
| Maximum Helix Angle | 38 |
| Primary Workpiece Material | Hard Material; Stainless Steel; Cast Iron; Steel |
| Primary Workpiece Material Code | P; H; K; M |
| Secondary Workpiece Material | High Temperature Alloy |
| Secondary Workpiece Material Code | S |
| Series | 4V05 |
| Material Application | Hard Material; Superalloy; Stainless Steel; Cast Iron; Steel |
| Coating Classification | PVD |
| For Use With. | End Mill |
| Helix Style | Medium |
| Manufacturers Catalog Number | TF4V0503001A |
