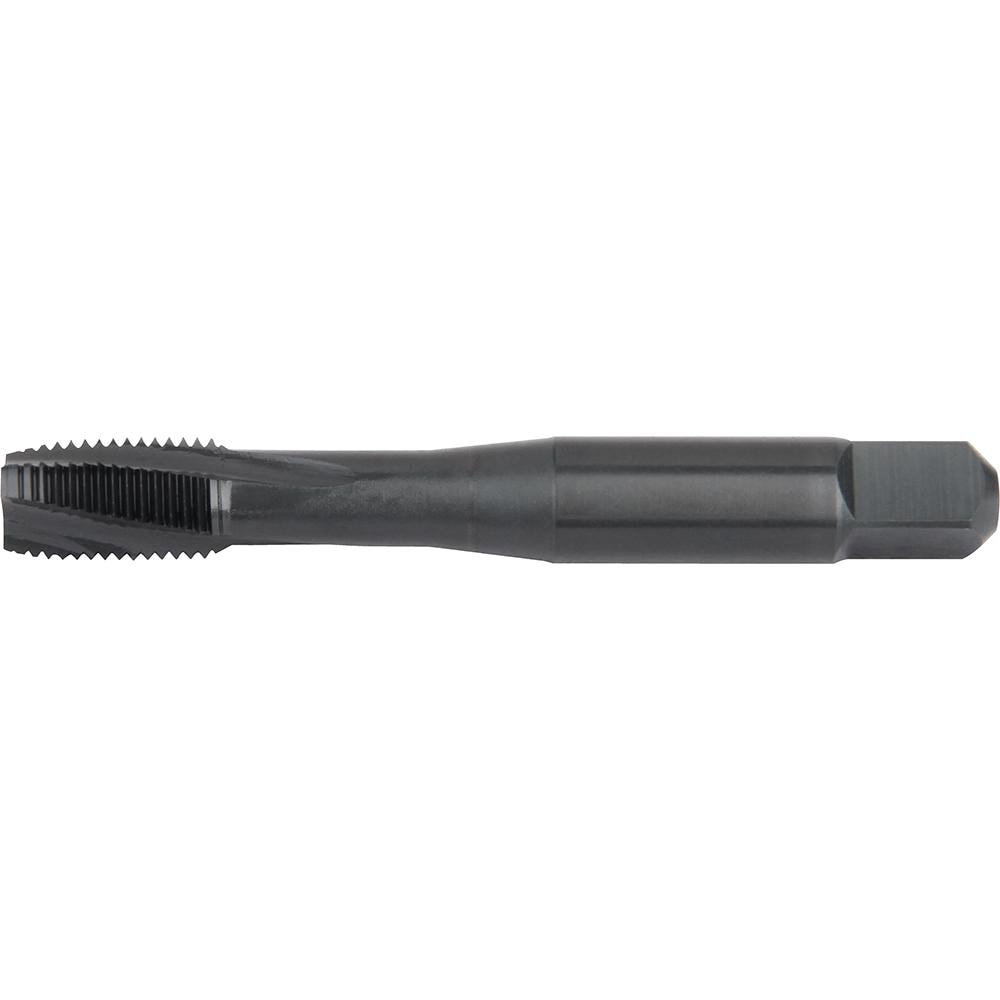

Brand: Widia / Part #: 5705995
Item #: 12674388
Brand: Widia
Model #: 5705995
Product Specifications
| Thread Size (Inch) | 1/4-20 |
| Chamfer | Bottoming |
| Thread Limit | H3 |
| Class Of Fit | 3B |
| Number Of Flutes | 3 |
| Material | Powdered Metal |
| Threads per Inch | 20 |
| Thread Direction | Right Hand |
| Flute Direction | Right Hand |
| Coating/Finish | Oxide; Nitride |
| Coolant Through | No |
| Thread Length (Decimal Inch) | 0.4400 |
| Overall Length (Decimal Inch) | 2.5000 |
| Thread Depth (Decimal Inch) | 1.0000 |
| Thread Pitch (Decimal Inch) | 0.0500 |
| Thread Standard | UNC |
| Material Grade | WS39MG |
| Shank Diameter (Decimal Inch) | 0.2550 |
| Square Size (Decimal Inch) | 1.8900 |
| Material Application | High-Temperature Alloy |
| Series | GT94 |
