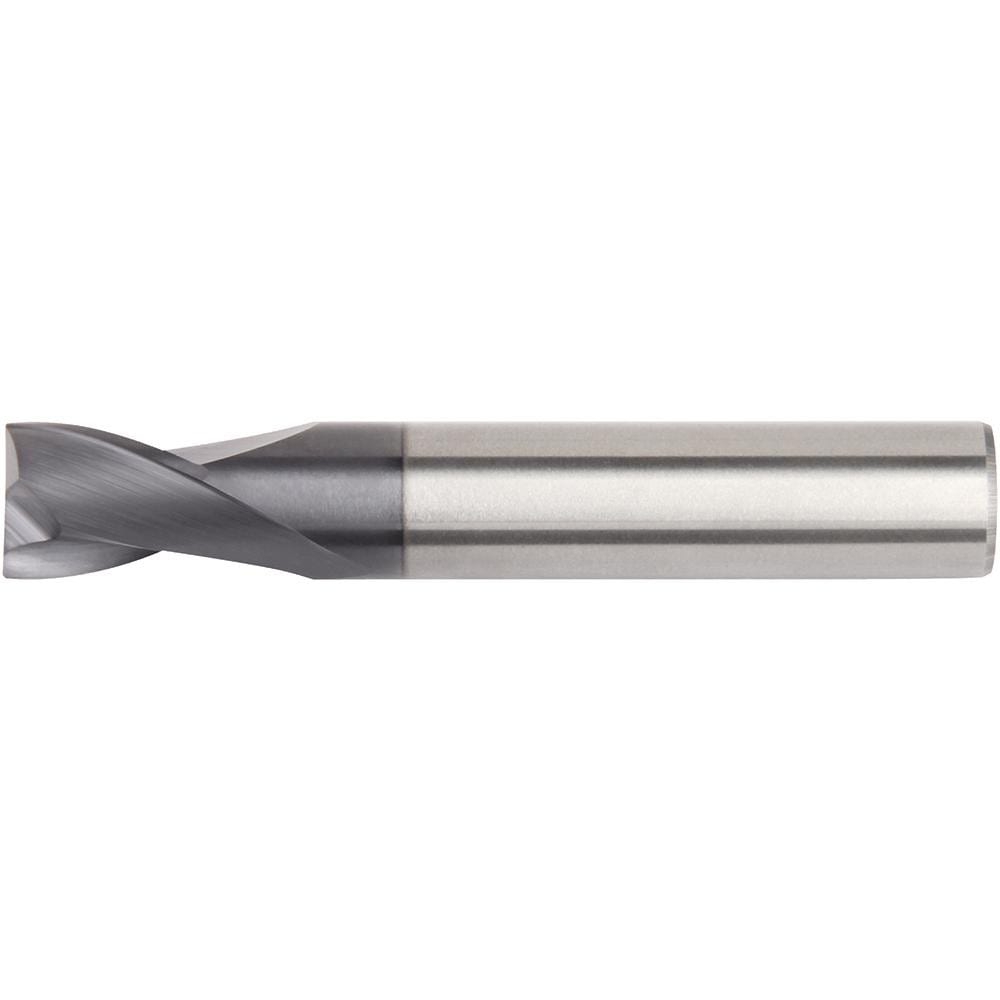

Brand: Widia / Part #: 6286102
Item #: 33970914
Brand: Widia
Model #: 6286102
Product Specifications
| Coating/Finish | TiAlN |
| End Mill Material | Solid Carbide |
| Number Of Flutes | 2 |
| Overall Length (Inch) | 1-1/2 |
| Length of Cut (Inch) | 3/8 |
| Cutting Direction | Right Hand |
| Mill Diameter (Decimal Inch) | 0.0938 |
| Flute Direction | Right Hand |
| Overall Length (Decimal Inch) | 1.5000 |
| Chipbreaker | No |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.3750 |
| Length Type | Regular |
| Flute Type | Helical |
| Extended Reach | No |
| Shank Type | Straight-Cylindrical |
| Centercutting | Yes |
| Material Removal Type | Finishing |
| Minimum Helix Angle | 30.00 |
| Maximum Helix Angle | 30.00 |
| Primary Workpiece Material | Steel |
| Primary Workpiece Material Code | P |
| Secondary Workpiece Material | Stainless Steel; Cast Iron |
| Secondary Workpiece Material Code | K; M |
| Series | I2R |
