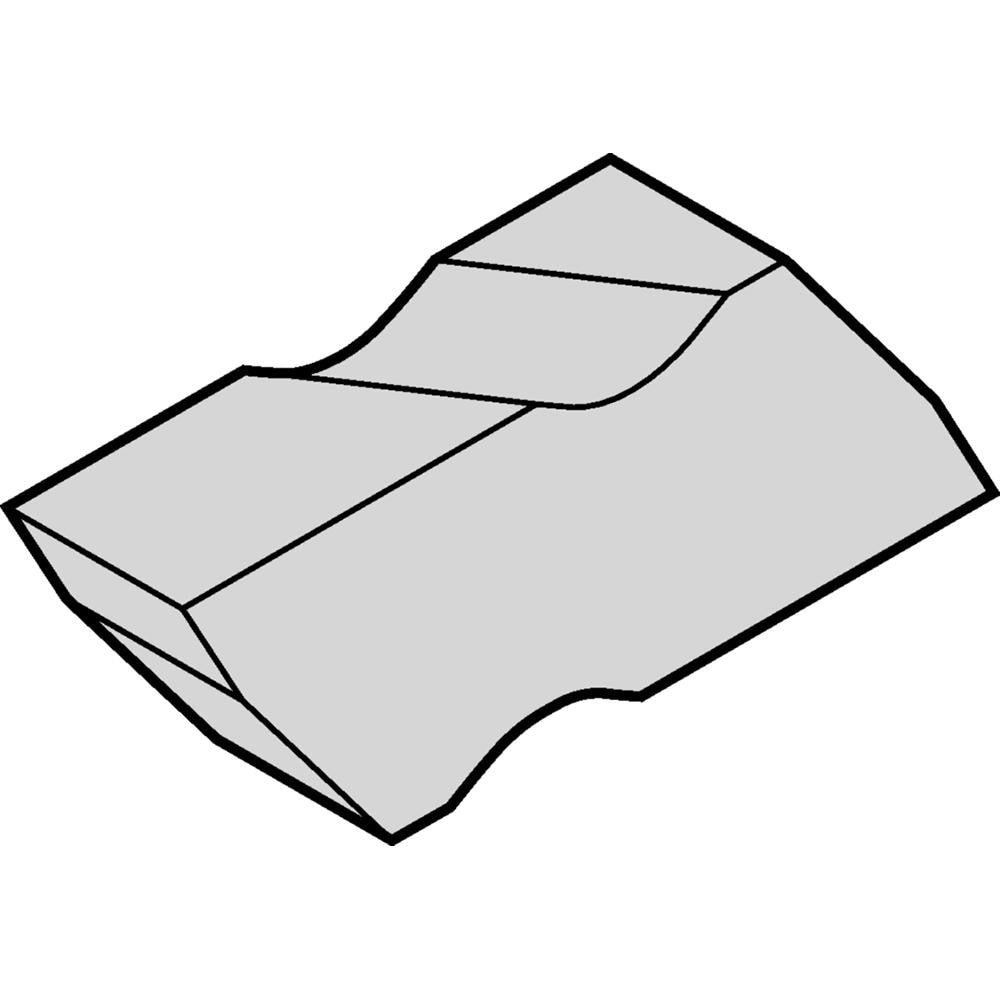

Brand: Widia / Part #: 3607019
Item #: 94478708
Brand: Widia
Model #: 3607019
Product Specifications
| Insert Style | NB |
| Insert Size Code | 3 |
| Insert Size | 3 |
| Insert Material | Carbide |
| Manufacturer Grade | WU10HT |
| Cutting Width (Decimal Inch) | 0.1949 |
| Maximum Depth of Cut (Decimal Inch) | 0.3900 |
| Insert Holding Method | Clamp |
| Insert Hand | Right Hand |
| Corner Radius (Decimal Inch) | 0.0000 |
| Lead Angle | 0.000 |
| Rake | Neutral |
| Multi-use Tool | Yes |
| Cutting Tool Application | Grooving; Turning |
| Series | NB |
| Coating Process | Uncoated |
| Overall Length (Decimal Inch) | 0.9060 |
| Overall Length (Inch) | 29/32 |
| Primary Workpiece Material | Super-alloys & Titanium |
| Primary Workpiece Material Code | S |
| Secondary Workpiece Material | Non-Ferrous Metal; Stainless Steel |
| Ansi Code | NB3R |
| Iso Code | NB3R |
| Manufacturers Catalog Number | NB3R |
| Insert Thickness (Decimal Inch) | 0.3440 |
| Minimum Groove Width (mm) | 4.95 |
| Thickness (Inch) | 11/32 |
| Type | Top Notch Grooving Insert |
| Maximum Groove Width (mm) | 4.95 |
| Minimum Insert Width (mm) | 4.95 |
| Chip Breaker | None |
| Insert Seat Size | 3 |
| Style | Top Notch Grooving Insert |
| Insert Height (Decimal Inch) | 0.3440 |
| Full Radius | No |
| Gage Diameter (Decimal Inch) | 0.3750 |
| Coating Classification | Uncoated |
| Hole Diameter (Decimal Inch) | 0.0000 |
| Gage Diameter (Inch) | 3/8 |
| Overall Width (Decimal Inch - 4 Decimals) | 0.1950 |
| Coating/Finish | Uncoated |
| Number Of Cutting Edges | 2 |
| Single Or Double End | Single |
| Groove Width (mm) | 4.95 |
| For Use With | Grooving; Turning |
