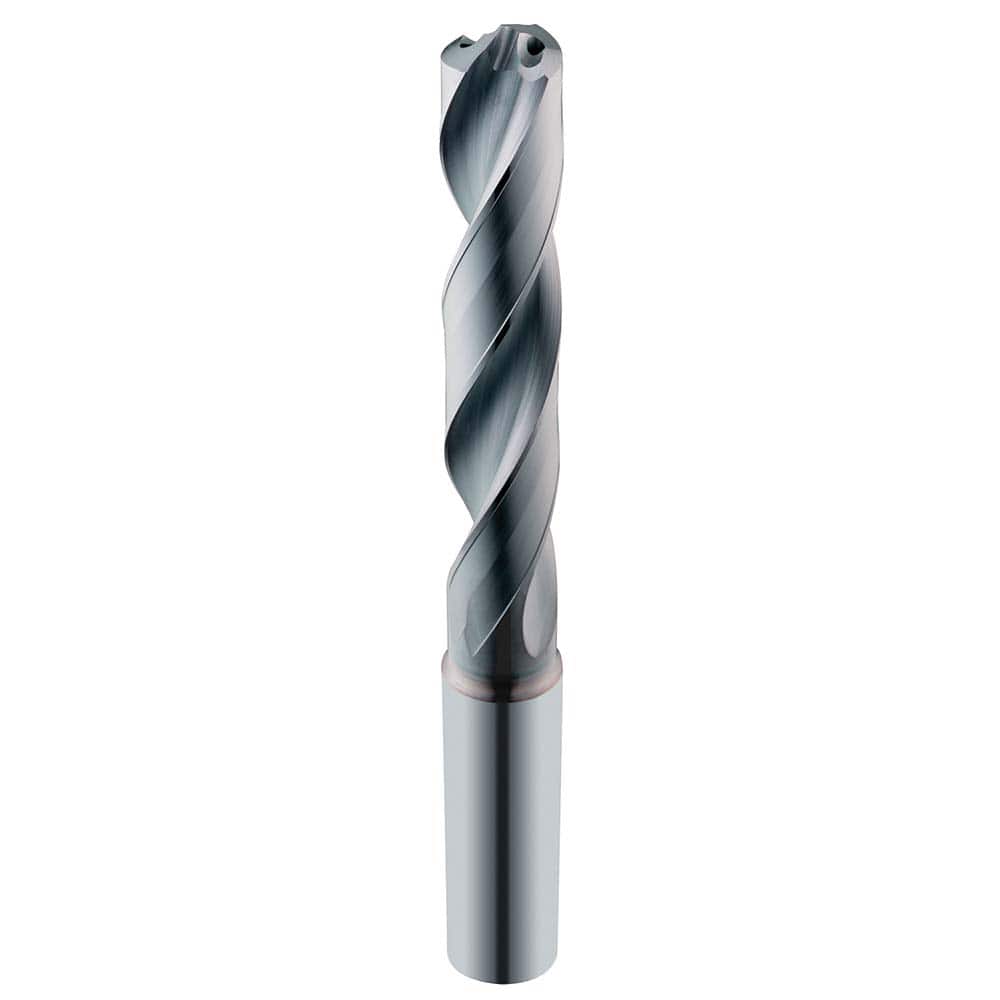

SGS - Screw Machine Length Drill Bits Drill Bit Size (Decimal Inch): 0.6875 Drill Bit Size (mm): 17.46
Item #: 19242122
Brand: SGS
Model #: 56434
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high-speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Spiral flutes are constructed of a higher flute angle to remove chips easier.
Spiral flute reamers are used in blind and through-hole operations. They are used to bridge interrupted cuts.
Product Specifications
Screw Machine Length Drill Bits; Drill Bit Size (Decimal Inch): 0.6875 ; Drill Bit Size (mm): 17.46 ; Drill Bit Size (Inch): 11/16 ; Drill Point Angle: 135 ; Drill Bit Material: Solid Carbide ; Drill Bit Finish/Coating: TX
| Drill Bit Size (Decimal Inch) | 0.6875 |
| Drill Bit Size (mm) | 17.46 |
| Drill Bit Size (Inch) | 11/16 |
| Drill Point Angle | 135 |
| Drill Bit Material | Solid Carbide |
| Drill Bit Finish/Coating | TX |
| Flute Type | Spiral |
| Cutting Direction | Right Hand |
| Shank Type | Cylindrical |
| Coolant Through | Yes |
| Flute Length (mm) | 73.00 |
| Flute Length (Decimal Inch) | 2.8740 |
| Overall Length (mm) | 122.9995 |
| Overall Length (Decimal Inch) | 4.84250 |
| Point Type | Standard |
| Shank Diameter (mm) | 18.0010 |
| Shank Diameter (Decimal Inch) | 0.7087 |
| Flute Type | Spiral |
| Specification Designation | DIN |
| Maximum Drilling Depth (Decimal Inch) | 2.8740 |
| Number of Flutes | 2 |
| Spiral Type | Regular Spiral |
| Shank Length (mm) | 48.001 |
| Shank Length (Decimal Inch) | 1.8898 |
| Threaded Shank | No |
| Number of Flutes | 2 |
| Drill Point Length (mm) | 3.62 |
| Drill Point Length (Decimal Inch) | 0.1424 |
| Drill Bit Diameter Tolerance (Decimal Inch) | +.00028/+.00098 |
| Drill Bit Diameter Tolerance (mm) | +0.007/+0.025 |
| Drill Bit Diameter Tolerance (mm) | +0.007/+0.025 |
| Drill Bit Diameter Tolerance (Decimal Inch) | +.00028/+.00098 |
| Specification Number | DIN 6537 |
| Number of Margins | 4.000 |
| PSC Code | 3455 |
| Specification Number | DIN 6537 |
| Web Thinning | Web-Thinned |
| Through Coolant | Yes |
| Drill Bit Grade | High Performance |
| Drill Bit Grade | High Performance |
| Material Grade | Micro-Grain |
| Series/List | 142P |
| Length Type | Short |
