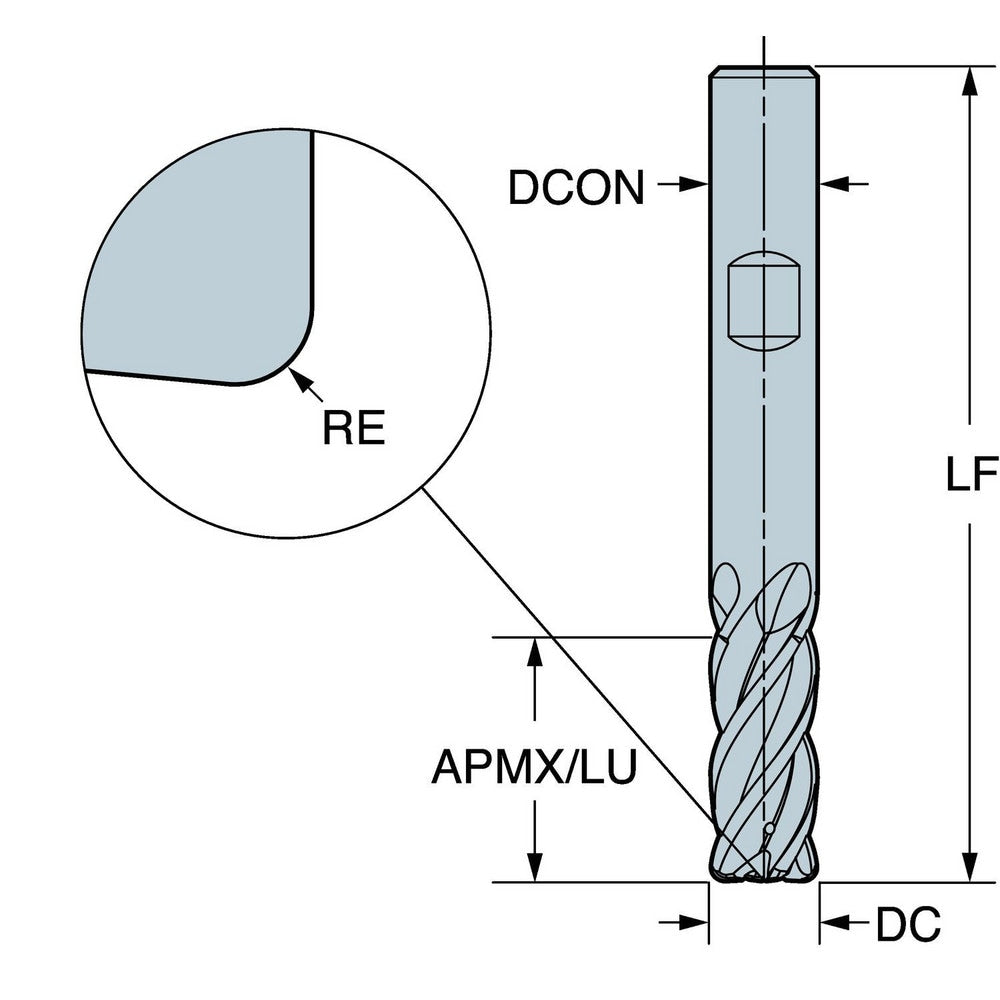

Brand: Sandvik Coromant / Part #: 8352976
Item #: 67683359
Brand: Sandvik Coromant
Model #: 8352976
Product Specifications
Mill Diameter (mm) | 16.00 |
Corner Radius (mm) | 0.50 |
Coating/Finish | TiAlSiN |
End Mill Material | Solid Carbide |
Number Of Flutes | 4 |
Single Or Double End | Single |
Overall Length (mm) | 97.0000 |
Length of Cut (mm) | 34.0000 |
Cutting Direction | Right Hand |
Coolant Through | Yes |
Mill Diameter (Decimal Inch) | 0.6299 |
Flute Direction | Right Hand |
Helix Angle | 38 |
Chipbreaker | No |
End Type | Corner Radius |
Length Type | Standard |
Extended Reach | No |
Shank Type | Weldon |
Centercutting | Yes |
Material Removal Type | Roughing |
Shank Diameter (mm) | 16.0000 |
Minimum Helix Angle | 35 |
Maximum Helix Angle | 45 |
Primary Workpiece Material | Stainless Steel |
Primary Workpiece Material Code | M |
Secondary Workpiece Material | Super Alloys & Titanium |
Secondary Workpiece Material Code | S |
Series | CoroMill? Plura |
Material Application | Stainless Steel; Superalloys & Titanium |
Coating Classification | PVD |
Helix Style | Variable |
Manufacturers Catalog Number | 2S342-1600-050CMB M2CM |
