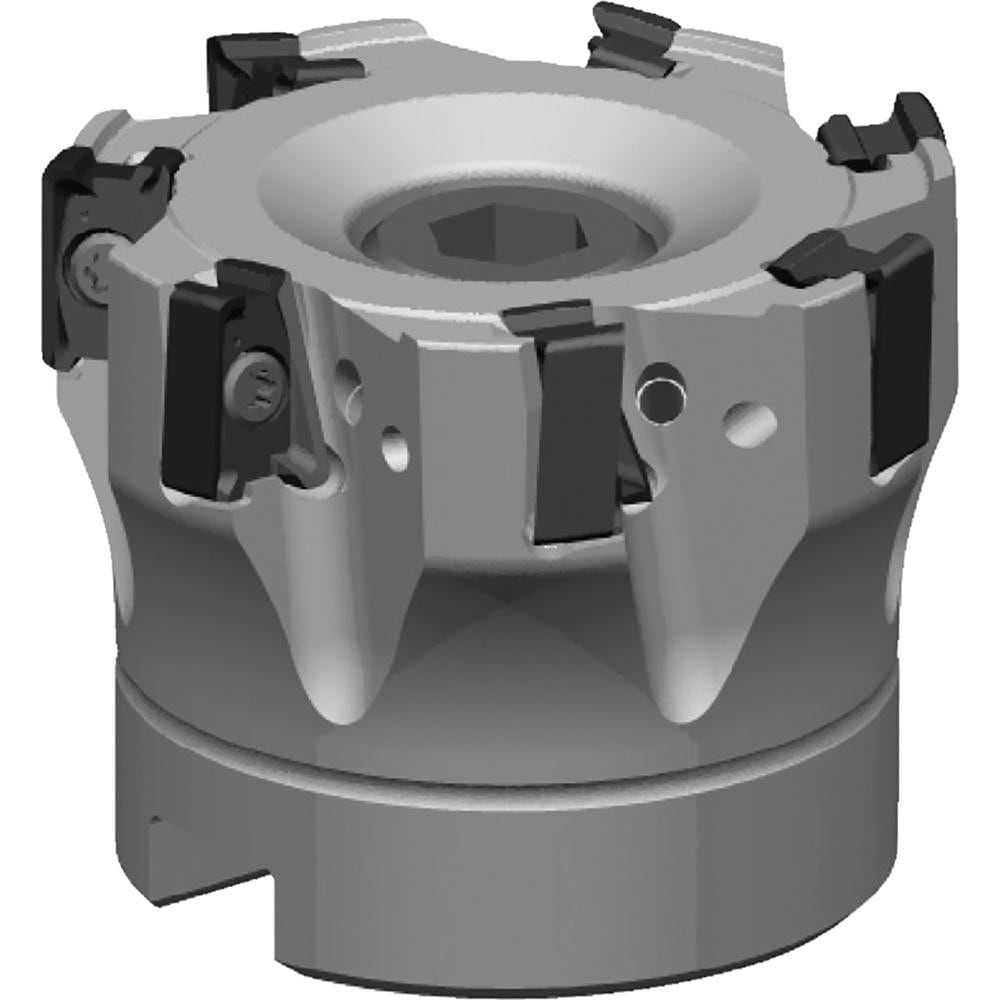

Brand: Widia / Part #: 6740674

Brand: Widia / Part #: 6740674


Item #: 09924549
Brand: Widia
Model #: 6740674

Product Specifications

Minimum Cutting Diameter (Decimal Inch) 1.5000
Maximum Cutting Diameter (Decimal Inch) 1.5000
Maximum Depth of Cut (Decimal Inch) 0.3940
Arbor Hole Diameter (Decimal Inch) 0.7500
Compatible Insert Size Code XNGU1004..
Maximum Ramping Angle 0
Cutter Style VSM
Cutting Direction Right Hand
Insert Holding Method Screw
Lead Angle 90
Rake Negative (Axial); Negative (Radial)
Rake Angle -13.300
Series VSM490
Maximum Body Diameter (Decimal Inch) 1.4210
Overall Height (Decimal Inch) 1.5770
Keyway Width (mm) 8.19
Hub Diameter (Decimal Inch) 1.4210
Maximum RPM 26200.000
Tool Application Milling; Slotting
Tool Performance General Purpose
Primary Workpiece Material Universal
Number of Adjustable Pockets 0
ISO Number VSM490D150Z07S075XN10
Coolant Hole Diameter (Decimal Inch) 0.0790
Complete Insert Compatibility XNGU100408SRMM
Toolholder Material Steel
Manufacturers Catalog Number VSM490D150Z07S075XN10
Coolant Through Yes
Number Of Cutter Inserts 7
Number Of Flutes 7
$1,117.58
