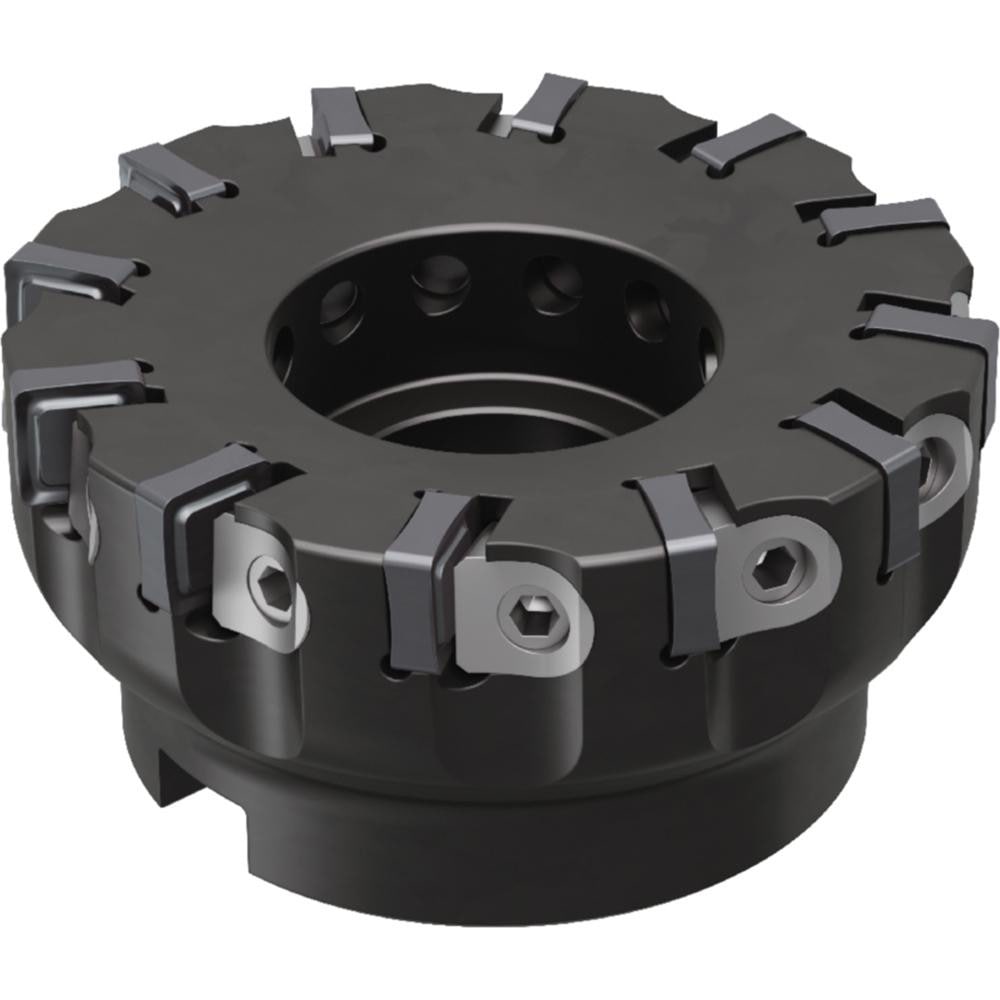

Brand: Widia / Part #: 6921194

Brand: Widia / Part #: 6921194


Item #: 97483432
Brand: Widia
Model #: 6921194

Product Specifications

Minimum Cutting Diameter (Decimal Inch) 4.0000
Minimum Cutting Diameter (Inch) 4
Maximum Cutting Diameter (Inch) 4-1/64
Maximum Cutting Diameter (Decimal Inch) 4.0149
Maximum Depth of Cut (Decimal Inch) 0.4528
Arbor Hole Diameter (Decimal Inch) 1.2500
Arbor Hole Diameter (Inch) 1-1/4
Lead Angle 89.000
Compatible Insert Size Code SN..1204
Cutter Style M8090
Cutting Direction Right Hand
Insert Holding Method Wedge
Rake Negative
Series M8090
Hub Diameter (Inch) 2-7/8
Hub Diameter (Decimal Inch) 2.8750
Overall Height (Inch) 2
Overall Height (Decimal Inch) 2.0000
Maximum Body Diameter (Decimal Inch) 3.9213
Tool Application Facing; Milling
Tool Performance General Purpose
Primary Workpiece Material Cast Iron
Primary Workpiece Material Code K
Complete Insert Compatibility SNHF120412SNMM
Toolholder Material Steel
Number Of Cutter Inserts 12
Coolant Through No
Number Of Flutes 12
$908.01
