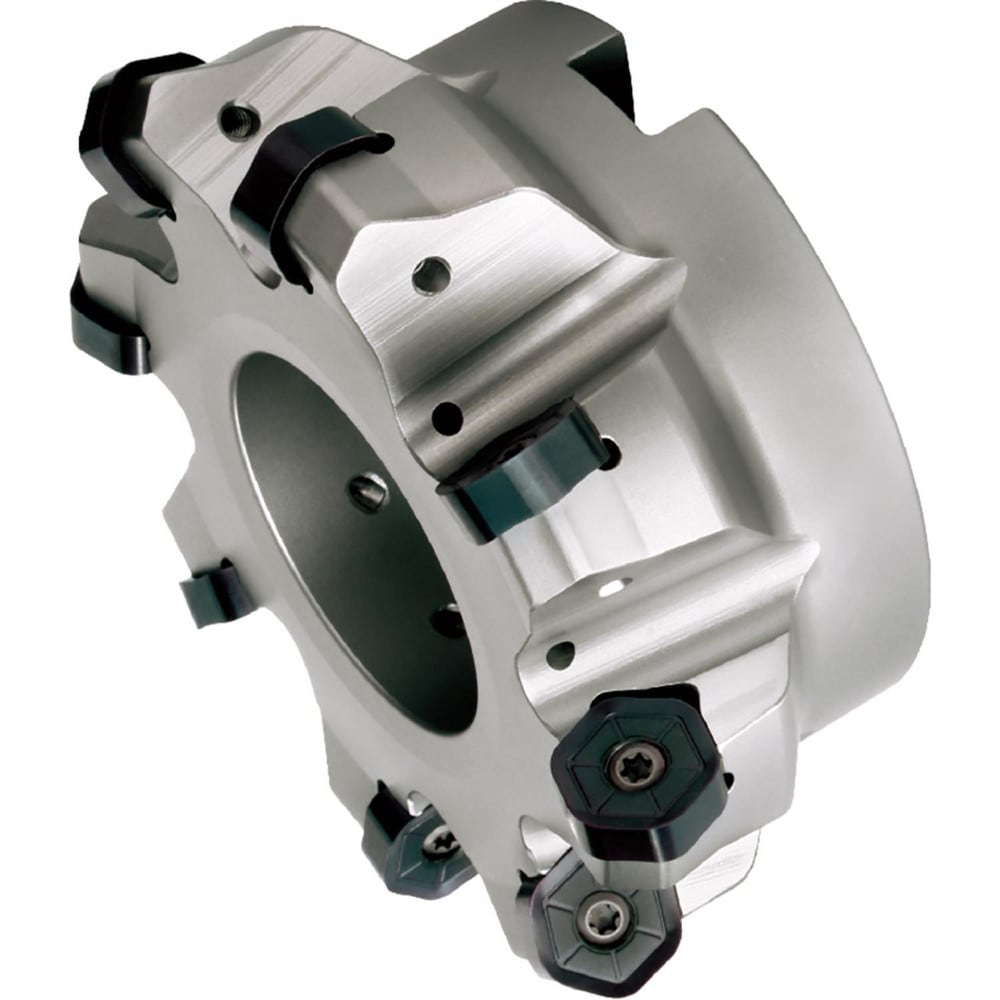

Brand: Widia / Part #: 3025377

Brand: Widia / Part #: 3025377


Item #: 97478309
Brand: Widia
Model #: 3025377

Product Specifications

Minimum Cutting Diameter (mm) 80.00
Maximum Cutting Diameter (mm) 91.00
Maximum Depth of Cut (mm) 4.50
Arbor Hole Diameter (mm) 27.00
Lead Angle 45.000
Compatible Insert Size Code HN..0905
Cutter Style M1200
Cutting Direction Right Hand
Insert Holding Method Screw
Rake Negative
Series M1200
Hub Diameter (mm) 60.000
Overall Height (Mm - 5 Decimals) 50.00000
Maximum Body Diameter (mm) 87.10
Maximum RPM 7900.000
Tool Application Facing; Milling
Tool Performance General Purpose
Primary Workpiece Material Hard Material; Non-Ferrous Metal; Stainless Steel; Cast Iron; Super-alloys & Titanium; Steel
Primary Workpiece Material Code P; S; H; K; M; N
Complete Insert Compatibility HNGJ0905ANENLD
Toolholder Material Steel
Number Of Cutter Inserts 9
Coolant Through Yes
Number Of Flutes 9
$893.63
