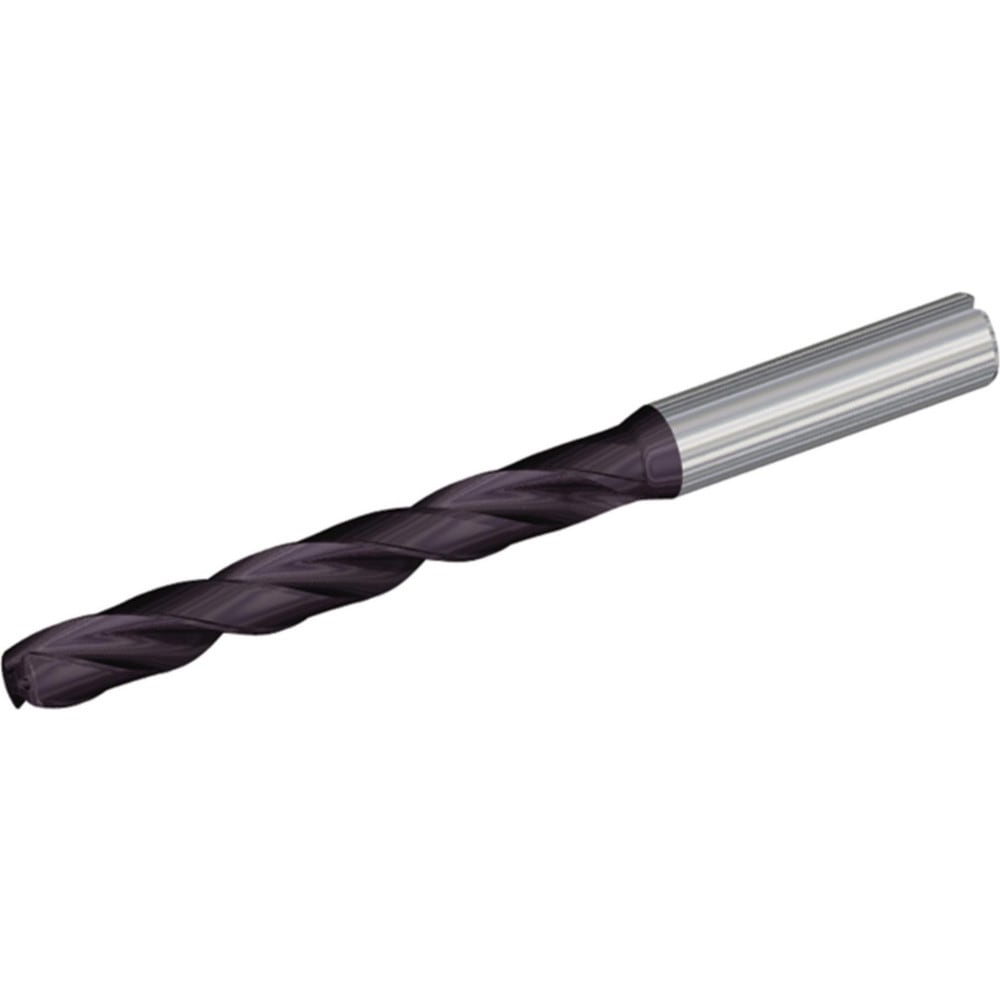

Brand: Widia / Part #: 4173525
Item #: 03497153
Brand: Widia
Model #: 4173525
Product Specifications
| Drill Bit Size (mm) | 13.50 |
| Overall Length (mm) | 246.0000 |
| Flute Length (mm) | 196.00 |
| Tool Material | Carbide |
| Coating/Finish | TiAlN |
| Drill Point Angle | 132 |
| Shank Type | Cylindrical |
| Coolant Through | Yes |
| Flute Type | Spiral |
| Series | TDS504A |
| Point Type | Cone Relief |
| Cutting Direction | Right Hand |
| Tool Application | Deep Hole Drilling |
| Spiral Type | Regular |
| Drill Bit Diameter Tolerance | 0.000300 to 0.001000 in |
| Number Of Flutes | 2 |
| Primary Workpiece Material | Stainless Steel; Cast Iron; Steel |
| Primary Workpiece Material Code | P; K; M |
| Drill Bit Grade | WU20PD |
| Drill Point Length (mm) | 2.90 |
| Shank Diameter (mm) | 14.0000 |
| Shank Length (mm) | 45.000 |
| Flute By Diameter Ratio | 12xD |
| Maximum Drilling Depth (mm) | 167.00 |
