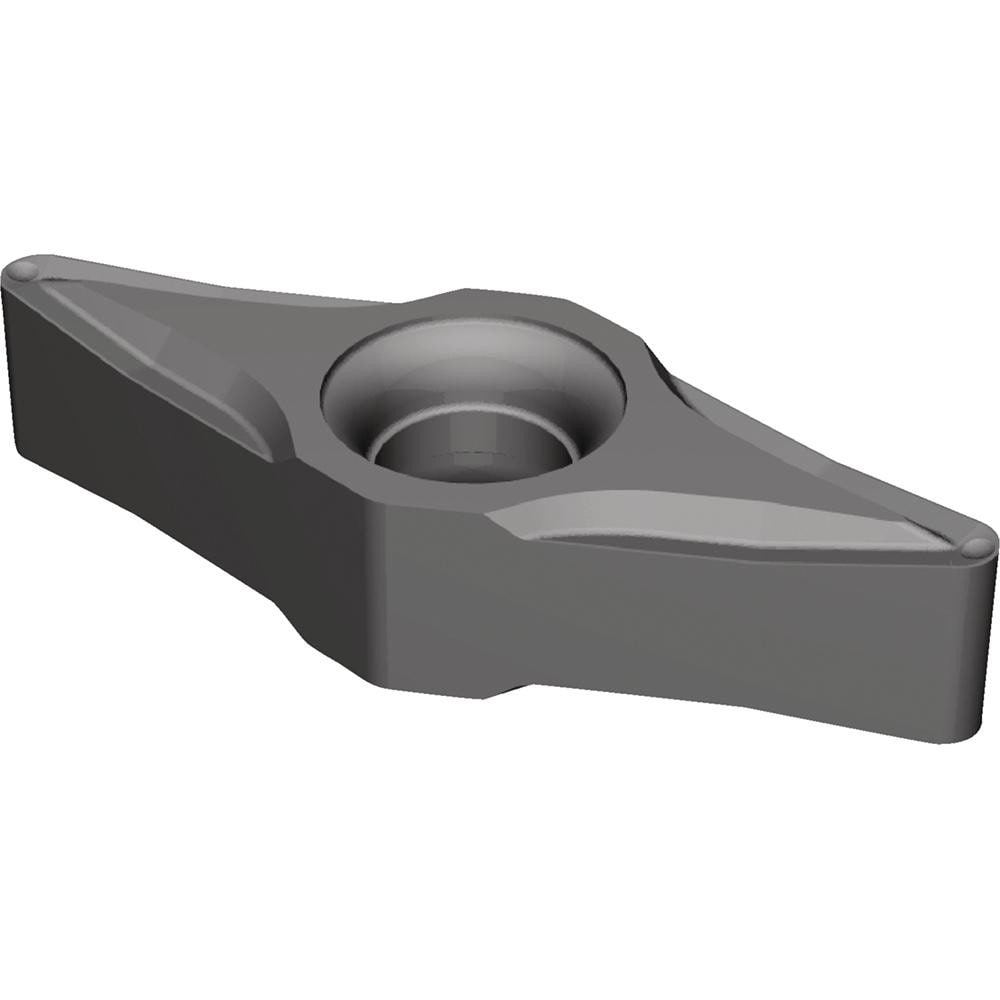

Brand: Widia / Part #: 6867908
Item #: 94004413
Brand: Widia
Model #: 6867908
Product Specifications
| Insert Style | VNMG |
| Insert Shape Code | V |
| Insert Size Code | 12T308 |
| Insert Shape | Diamond |
| Coating/Finish | AlTiN |
| Manufacturer Grade | WU25PT |
| Corner Radius (Decimal Inch) | 0.0315 |
| Insert Material | Carbide |
| Hole Diameter (Decimal Inch) | 0.1417 |
| Maximum Depth of Cut (Decimal Inch) | 0.2450 |
| Inscribed Circle (Decimal Inch) | 0.2810 |
| Insert Holding Method | Clamp |
| Insert Hand | Neutral |
| Insert Thickness (Decimal Inch) | 0.1563 |
| Clearance Code | N |
| Tolerance Code | M |
| Included Angle | 35.00 |
| Relief Angle | 0.000 |
| Series | VNMG |
| Coating Process | PVD |
| Rake | Negative |
| Wiper Edge | No |
| Insert Length (Decimal Inch) | 0.4900 |
| Number Of Cutting Edges | 4 |
| Primary Workpiece Material | Stainless Steel; Super-alloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; M |
| Ansi Code | VNMG12T308 |
| Iso Code | VNMG12T308 |
| Manufacturers Catalog Number | VNMG12T308 |
| Cutting Direction | Neutral |
| Coating Classification | PVD |
| Chip Breaker | 04 |
| Style | VNMG |
| Width (Decimal Inch - 4 Decimals) | 0.2810 |
| Multi-Use Tool | Yes |
| Full Radius | No |
| Multi-Use Application | External Turning; Internal Turning |
