APX3000R253SA25ELA EM
Item #: MB03490687
Brand: Mitsubishi Materials USA
Model #: 490687

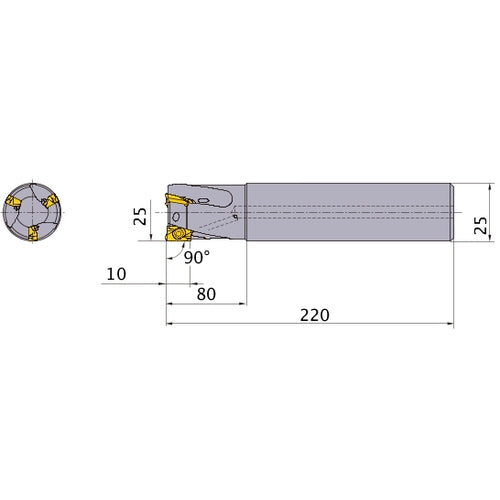

| Product Specifications | |
|---|---|
| Cutting Diameter (DC/DCX) | 25 mm |
| Functional Length (LF) | 220 mm |
| Cutting Diameter (DC) | 25 mm |
| Flute Count (NOF) | 3 |
| Cutting Item Count (CICT) | 3 |
| Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Depth of Cut Maximum (APMX) | 10 mm |
| Cutting Direction (HAND) | Right Hand |
| Ramping Angle Maximum (RMPX) | 4.6 Degrees |
| Series/List # | APX3000 |
| Connection Diameter Machine Side (DCONMS) | 25 mm |
| Measurement Type | Metric |
| Head Length (LH) | 80 mm |
