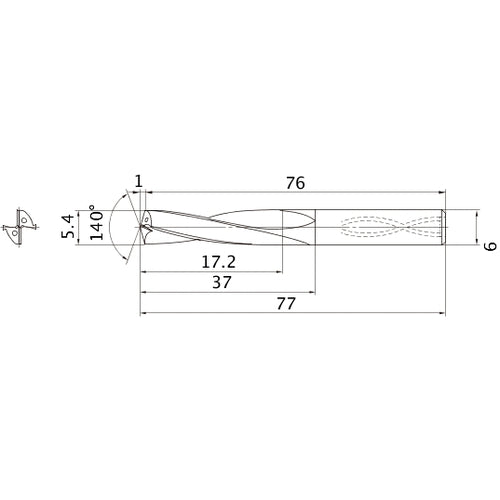

MAS0540MB CARB DRILL
Item #: MB03489176
Brand: Mitsubishi Materials USA
Model #: 489176
| Product Specifications | |
|---|---|
| Drill Bit Size / Cutting Diameter (DC) | 5.4 mm |
| Flute Helix Angle (FHA) | 10 Degrees |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 5.4 mm |
| Cutting Edge Material | Carbide |
| Length Group | 3xD |
| Grade | HTi10 |
| Applicable Material | Cast Iron | Aluminum / Non-Ferrous Materials |
| Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 6 mm |
| Series/List # | MAE_MAS |
| Coolant Supply Property (CSP) | Coolant Thru |
| Usable Length (LU) | 17.2 mm |
| Point Angle (SIG) | 140 Degrees |
| Length Chip Flute (LCF) | 37 mm |
| Point Length (PL) | 1 mm |
| Overall Length (OAL) | 77 mm |
| Functional Length (LF) | 76 mm |
| Flute Count (NOF) | 2 |
