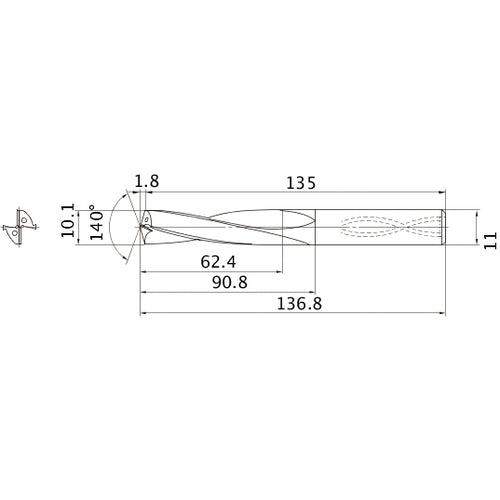

MAS1010LB CARB DRILL
Item #: MB03488544
Brand: Mitsubishi Materials USA
Model #: 488544
| Product Specifications | |
|---|---|
| Drill Bit Size / Cutting Diameter (DC) | 10.1 mm |
| Flute Helix Angle (FHA) | 10 Degrees |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 10.1 mm |
| Cutting Edge Material | Carbide |
| Length Group | 6xD |
| Grade | HTi10 |
| Applicable Material | Cast Iron | Aluminum / Non-Ferrous Materials |
| Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 11 mm |
| Series/List # | MAE_MAS |
| Coolant Supply Property (CSP) | Coolant Thru |
| Usable Length (LU) | 62.4 mm |
| Point Angle (SIG) | 140 Degrees |
| Length Chip Flute (LCF) | 90.8 mm |
| Point Length (PL) | 1.8 mm |
| Overall Length (OAL) | 136.8 mm |
| Functional Length (LF) | 135 mm |
| Flute Count (NOF) | 2 |
