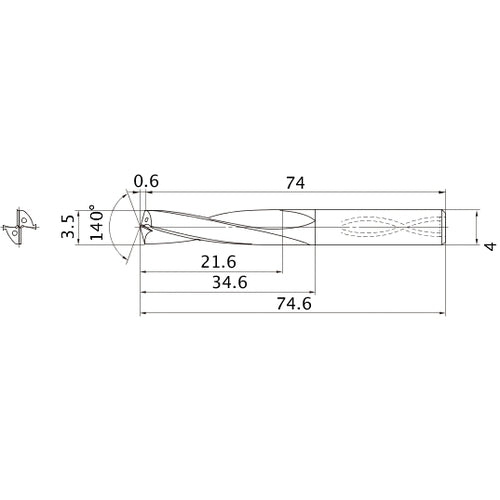

MAS0350LB HTI10 3.5 mm Dia. × 4 mm Shank × 34.6 mm Flute Length × 74.6 mm OAL, 140°, 2 Flute, Coolant Thru, Solid Carbide Drill
Item #: MB03312549
Brand: Mitsubishi Materials USA
Model #: 312549
| Product Specifications | |
|---|---|
| Drill Bit Size / Cutting Diameter (DC) | 3.5 mm |
| Cutting Edge Material | Carbide |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 3.5 mm |
| Grade | HTi10 |
| Length Group | 6xD |
| Measurement Type | Metric |
| Applicable Material | Cast Iron | Aluminum / Non-Ferrous Materials |
| Series/List # | MAE_MAS |
| Connection Diameter Machine Side (DCONMS) | 4 mm |
| Usable Length (LU) | 21.6 mm |
| Coolant Supply Property (CSP) | Coolant Thru |
| Length Chip Flute (LCF) | 34.6 mm |
| Point Angle (SIG) | 140 Degrees |
| Overall Length (OAL) | 74.6 mm |
| Point Length (PL) | 0.6 mm |
| Flute Count (NOF) | 2 |
| Functional Length (LF) | 74 mm |
| Feature | Pre-hole drilling for rolled tap.,Helical through coolant hole enables high speed machining (MAS type).,Specialized in aluminum and cast iron drilling.,High hole accuracy. |
| Flute Helix Angle (FHA) | 10 Degrees |
