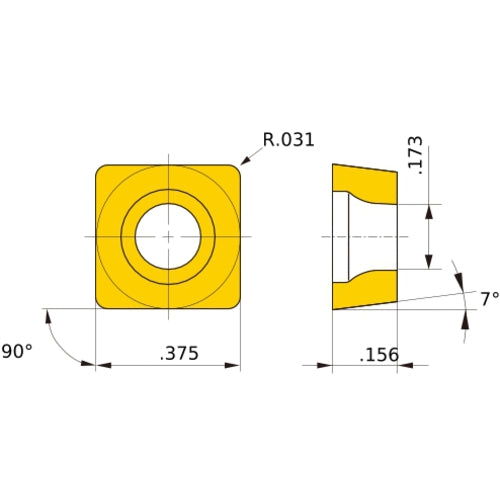

SCMT 32.52 MK MC5005, 0.8″ Corner Radius, 0.156″ Thick, 3/8″ Inscribed Circle, Turning Indexable Insert
Item #: MB02688802
Brand: Mitsubishi Materials USA
Model #: 688802
| Product Specifications | |
|---|---|
| Applicable Material | Cast Iron |
| Grade | MC5005 |
| Application | Medium Cutting |
| Tool Type | Turning Insert |
| Insert Style | SCMT |
| Fixing Hole Diameter (D1) | 4.4 mm |
| Corner Radius (RE) | 0.8 mm |
| Clearance Angle Major (AN) | 7 Degrees |
| Insert Size | 32.52 |
| Cutting Direction (HAND) | Neutral |
| Insert Thickness (S) | 3.97 mm |
| Chip Breaker Type | MK |
| Inscribed Circle Diameter (IC) | 9.525 mm |
| Measurement Type | Metric |
| Insert Included Angle (EPSR) | 90 Degrees |
| Shape | Square |
| Cutting Edge Material | Carbide |
| Series/List # | MC5005 |
