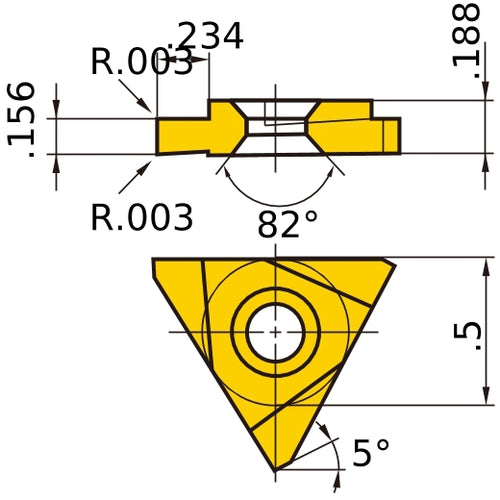

TNMC43NGR156 UTI20T INSERT
Item #: MB02107397
Brand: Mitsubishi Materials USA
Model #: 107397
| Product Specifications | |
|---|---|
| Cutting Width (CW) | 3.962 mm |
| Cutting Edge Material | Carbide |
| Corner Radius (RE) | 0.076 mm |
| Application | Grooving |
| Cutting Depth Maximum (CDX) | 5.944 mm |
| Applicable Material | Steel | Stainless Steel | Cast Iron |
| Insert Thickness (S) | 4.775 mm |
| Cutting Direction (HAND) | Right Hand |
| Inscribed Circle Diameter (IC) | 12.7 mm |
| Series/List # | UTi20T |
| Grade | UTi20T |
| Measurement Type | Metric |
