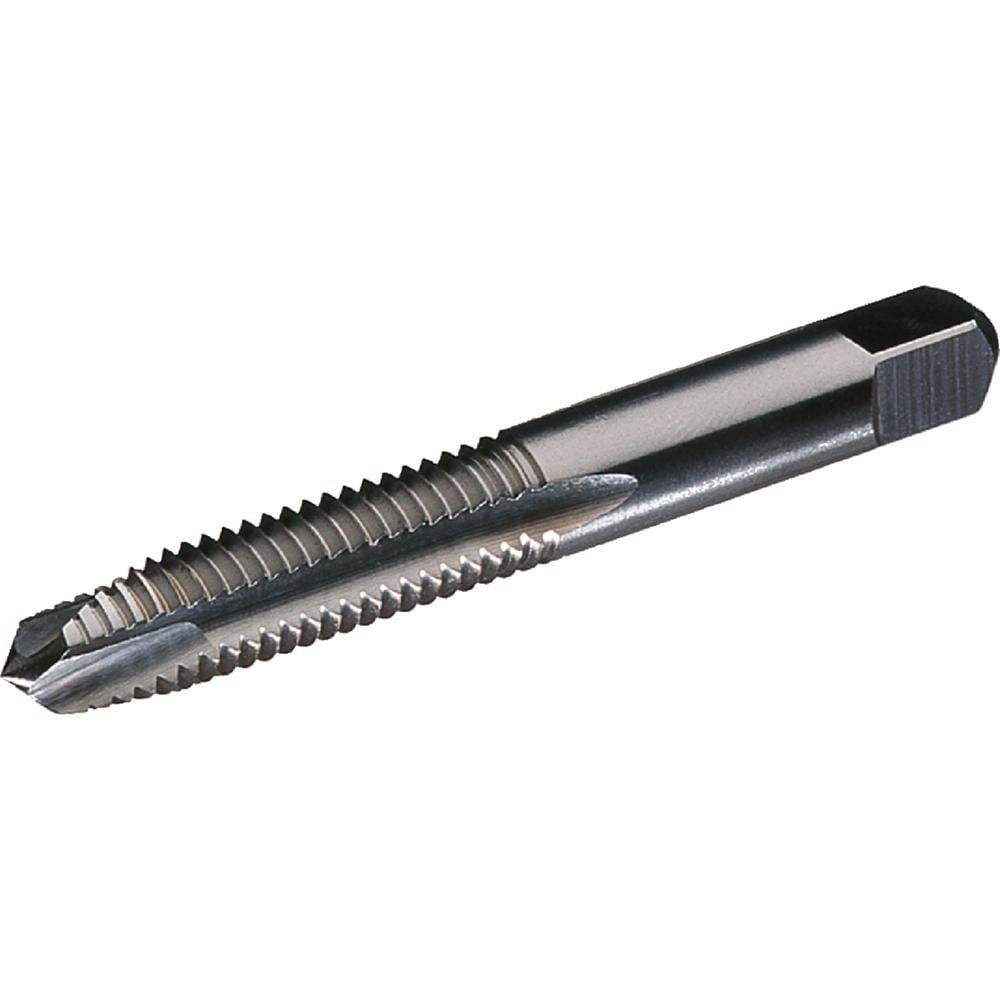

Brand: Widia / Part #: 2750209
Item #: 90879461
Brand: Widia
Model #: 2750209
Product Specifications
| Thread Size (Inch) | #6-32 |
| Number Of Flutes | 2 |
| Chamfer | Plug |
| Thread Limit | H7 |
| Class Of Fit | H7 |
| Coating/Finish | Uncoated |
| Threads per Inch | 32 |
| Material | High Speed Steel |
| Coolant Through | No |
| Thread Direction | Right Hand |
| Thread Depth (Decimal Inch) | 0.6875 |
| Thread Pitch (Decimal Inch) | 0.0313 |
| Thread Standard | UNC |
| Thread Length (Decimal Inch) | 0.6875 |
| Overall Length (Decimal Inch) | 2.0000 |
| Shank Diameter (Decimal Inch) | 0.1410 |
| Square Size (Decimal Inch) | 0.1100 |
| Material Application | Non-Ferrous Metal |
| Series | 5301/2301 |
