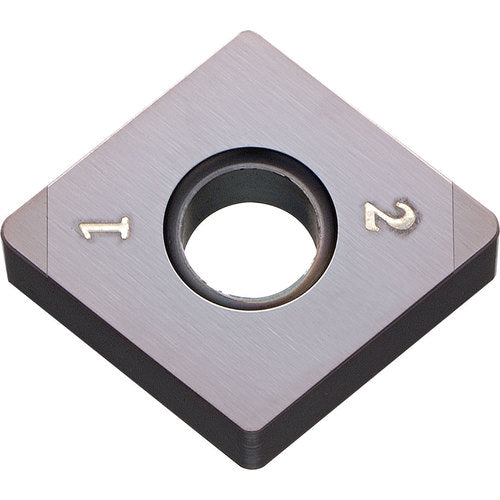

CNGA 435 KBN05M, 5/64″ Corner Radius, 3/16″ Thick, 1/2″ Inscribed Circle, MEGACOAT, 80 Degree Diamond, Turning Indexable Insert
Item #: KY99TBN01526
Brand: Kyocera Precision Tools
Model #: TBN01526
| Product Specifications | |
|---|---|
| Applicable Material | Hard Materials |
| Tool Type | Turning Insert |
| Application | Boring | External Turning | Facing | Internal Facing |
| Fixing Hole Diameter (D1) | 0.2032″ |
| Insert Style | CNGA |
| Clearance Angle Major (AN) | 0 Degrees |
| Corner Radius (RE) | 5/64″ |
| Number of Cutting Edges | 2 |
| Insert Size | 435 |
| Cutting Direction (HAND) | Neutral |
| Insert Thickness (S) | 3/16″ |
| Quantity | 1 |
| Inscribed Circle Diameter (IC) | 1/2″ |
| Measurement Type | Inch |
| Insert Included Angle (EPSR) | 80 Degrees |
| Shape | 80° Diamond |
| Cutting Edge Material | CBN |
| Series/List # | ISOI |
| Coating | MEGACOAT |
| Model No | 8837878 |
| Grade | KBN05M |
