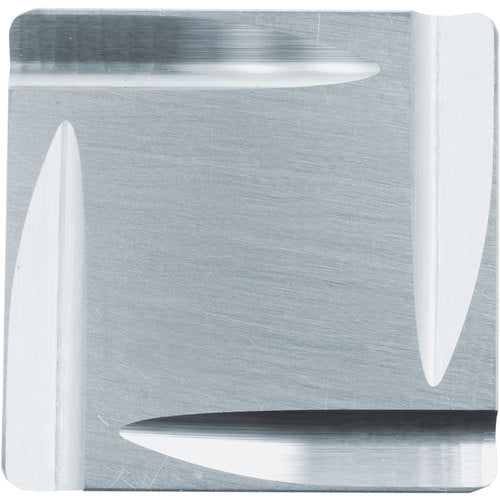

SPGR 422 TN610, 1/32″ Corner Radius, 1/8″ Thick, 1/2″ Inscribed Circle, TiCN, 90 Degree Square, Turning Indexable Insert
Item #: KY91TSS05427
Brand: Kyocera Precision Tools
Model #: TSS05427
| Product Specifications | |
|---|---|
| Applicable Material | Super-Alloys / Titanium |
| Grade | TN610 |
| Application | Boring | Chamfering | External Turning | Facing |
| Tool Type | Turning Insert |
| Insert Style | SPGR |
| Clearance Angle Major (AN) | 11 Degrees |
| Corner Radius (RE) | 1/32″ |
| Number of Cutting Edges | 4 |
| Insert Size | 422 |
| Cutting Direction (HAND) | Left Hand |
| Insert Thickness (S) | 1/8″ |
| Quantity | 10 |
| Inscribed Circle Diameter (IC) | 1/2″ |
| Measurement Type | Inch |
| Insert Included Angle (EPSR) | 90 Degrees |
| Shape | Square |
| Cutting Edge Material | Cermet |
| Series/List # | ISOI |
| Coating | TiCN |
| Model No | 8847806 |
