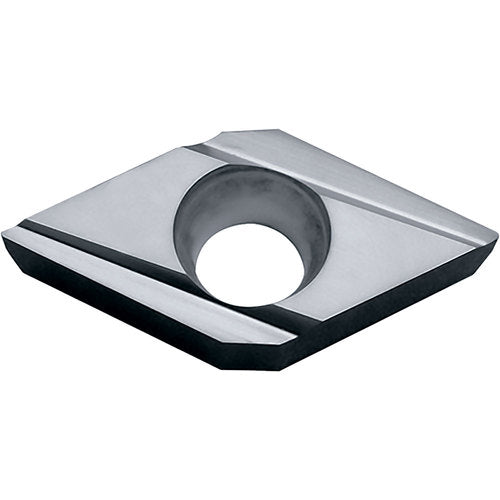

DCGT 32505 J TN610, 0.008″ Corner Radius, 5/32″ Thick, 3/8″ Inscribed Circle, TiCN, 55 Degree Diamond, Turning Indexable Insert
Item #: KY91TSS03375
Brand: Kyocera Precision Tools
Model #: TSS03375
| Product Specifications | |
|---|---|
| Applicable Material | Super-Alloys / Titanium |
| Tool Type | Turning Insert |
| Application | Back Boring | Copying | External Turning | Sub-Spindle |
| Fixing Hole Diameter (D1) | 0.1732″ |
| Insert Style | DCGT |
| Clearance Angle Major (AN) | 7 Degrees |
| Corner Radius (RE) | 0.008″ |
| Number of Cutting Edges | 2 |
| Insert Size | 32505 |
| Cutting Direction (HAND) | Right Hand |
| Insert Thickness (S) | 5/32″ |
| Chip Breaker Type | J |
| Inscribed Circle Diameter (IC) | 3/8″ |
| Quantity | 10 |
| Insert Included Angle (EPSR) | 55 Degrees |
| Measurement Type | Inch |
| Cutting Edge Material | Cermet |
| Shape | 55° Diamond |
| Coating | TiCN |
| Series/List # | ISOI |
| Grade | TN610 |
| Model No | 8847942 |
