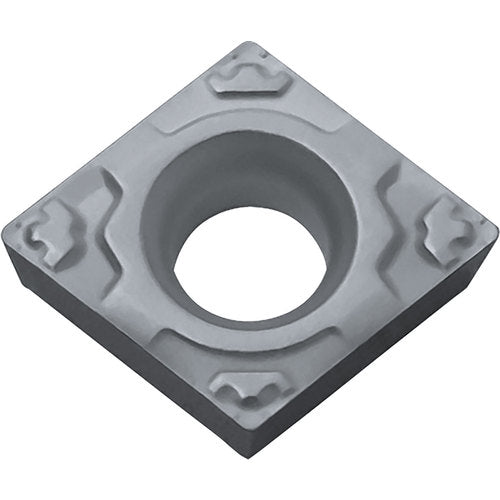

CPMT 25151 GP TN610, 1/64″ Corner Radius, 3/32″ Thick, 5/16″ Inscribed Circle, TiCN, 80 Degree Diamond, Turning Indexable Insert
Item #: KY91TSS02240
Brand: Kyocera Precision Tools
Model #: TSS02240
| Product Specifications | |
|---|---|
| Applicable Material | Super-Alloys / Titanium |
| Tool Type | Turning Insert |
| Application | Boring | Internal Facing |
| Fixing Hole Diameter (D1) | 0.1299″ |
| Insert Style | CPMT |
| Clearance Angle Major (AN) | 11 Degrees |
| Corner Radius (RE) | 1/64″ |
| Number of Cutting Edges | 2 |
| Insert Size | 25151 |
| Cutting Direction (HAND) | Neutral |
| Insert Thickness (S) | 3/32″ |
| Chip Breaker Type | GP |
| Inscribed Circle Diameter (IC) | 5/16″ |
| Quantity | 10 |
| Insert Included Angle (EPSR) | 80 Degrees |
| Measurement Type | Inch |
| Cutting Edge Material | Cermet |
| Shape | 80° Diamond |
| Coating | TiCN |
| Series/List # | ISOI |
| Grade | TN610 |
| Model No | 8847896 |
