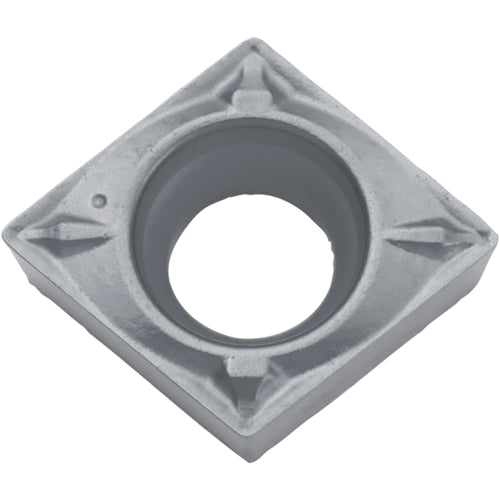

CCMT 2152 WP TN610, 1/32″ Corner Radius, 3/32″ Thick, 1/4″ Inscribed Circle, TiCN, 80 Degree Diamond, Turning Indexable Insert
Item #: KY91TSS01527
Brand: Kyocera Precision Tools
Model #: TSS01527
| Product Specifications | |
|---|---|
| Applicable Material | Super-Alloys / Titanium |
| Tool Type | Turning Insert |
| Application | Boring | External Turning | Facing | Internal Facing |
| Fixing Hole Diameter (D1) | 0.1102″ |
| Insert Style | CCMT |
| Clearance Angle Major (AN) | 7 Degrees |
| Corner Radius (RE) | 1/32″ |
| Number of Cutting Edges | 2 |
| Insert Size | 2152 |
| Cutting Direction (HAND) | Neutral |
| Insert Thickness (S) | 3/32″ |
| Chip Breaker Type | WP |
| Inscribed Circle Diameter (IC) | 1/4″ |
| Quantity | 10 |
| Insert Included Angle (EPSR) | 80 Degrees |
| Measurement Type | Inch |
| Cutting Edge Material | Cermet |
| Shape | 80° Diamond |
| Coating | TiCN |
| Series/List # | ISOI |
| Grade | TN610 |
| Model No | 8859316 |
