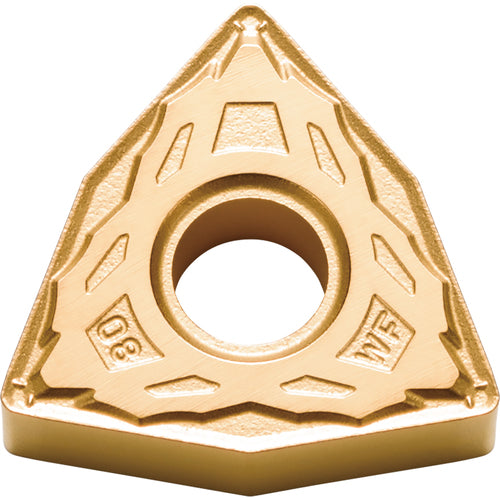

WNMG 432 WF TN620, 1/32″ Corner Radius, 3/16″ Thick, 1/2″ Inscribed Circle, TiCN, 80 Degree Trigon, Turning Indexable Insert
Item #: KY91TSR09101
Brand: Kyocera Precision Tools
Model #: TSR09101
| Product Specifications | |
|---|---|
| Applicable Material | Super-Alloys / Titanium |
| Tool Type | Turning Insert |
| Application | Boring | External Turning | Facing | Internal Facing |
| Fixing Hole Diameter (D1) | 0.2032″ |
| Insert Style | WNMG |
| Clearance Angle Major (AN) | 0 Degrees |
| Corner Radius (RE) | 1/32″ |
| Number of Cutting Edges | 6 |
| Insert Size | 432 |
| Cutting Direction (HAND) | Neutral |
| Insert Thickness (S) | 3/16″ |
| Chip Breaker Type | WF |
| Inscribed Circle Diameter (IC) | 1/2″ |
| Quantity | 10 |
| Insert Included Angle (EPSR) | 80 Degrees |
| Measurement Type | Inch |
| Cutting Edge Material | Cermet |
| Shape | 80° Trigon |
| Coating | TiCN |
| Series/List # | ISOI |
| Grade | TN620 |
| Model No | 8849299 |
