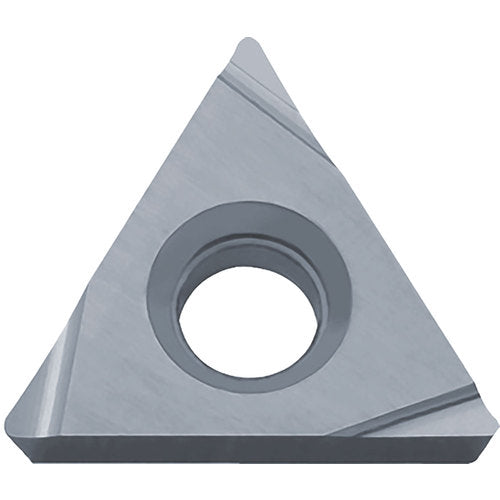

TPGH 322 TN620, 1/32″ Corner Radius, 1/8″ Thick, 3/8″ Inscribed Circle, TiCN, 60 Degree Triangle, Turning Indexable Insert
Item #: KY91TSR06894
Brand: Kyocera Precision Tools
Model #: TSR06894
| Product Specifications | |
|---|---|
| Applicable Material | Super-Alloys / Titanium |
| Tool Type | Turning Insert |
| Application | Back Boring | Boring | Copying | External Turning | Internal Facing |
| Fixing Hole Diameter (D1) | 0.1772″ |
| Insert Style | TPGH |
| Clearance Angle Major (AN) | 11 Degrees |
| Corner Radius (RE) | 1/32″ |
| Number of Cutting Edges | 3 |
| Insert Size | 322 |
| Cutting Direction (HAND) | Left Hand |
| Insert Thickness (S) | 1/8″ |
| Quantity | 10 |
| Inscribed Circle Diameter (IC) | 3/8″ |
| Measurement Type | Inch |
| Insert Included Angle (EPSR) | 60 Degrees |
| Shape | 60° Triangle |
| Cutting Edge Material | Cermet |
| Series/List # | ISOI |
| Coating | TiCN |
| Model No | 8862761 |
| Grade | TN620 |
