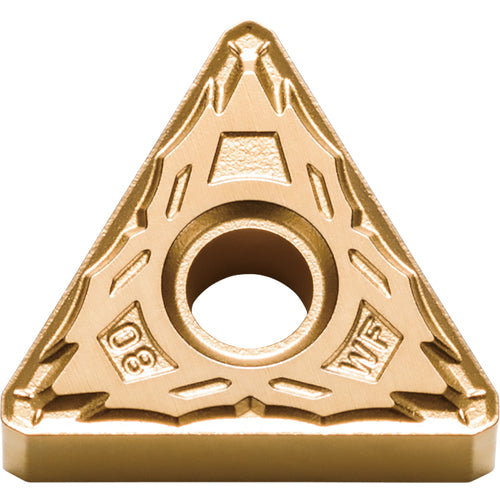

TNMX 333 WF TN620, 3/64″ Corner Radius, 3/16″ Thick, 3/8″ Inscribed Circle, TiCN, 60 Degree Triangle, Turning Indexable Insert
Item #: KY91TSR06602
Brand: Kyocera Precision Tools
Model #: TSR06602
| Product Specifications | |
|---|---|
| Applicable Material | Super-Alloys / Titanium |
| Tool Type | Turning Insert |
| Application | Boring | Chamfering | Copying | External Turning | Facing |
| Fixing Hole Diameter (D1) | 0.15″ |
| Insert Style | TNMX |
| Clearance Angle Major (AN) | 0 Degrees |
| Corner Radius (RE) | 3/64″ |
| Number of Cutting Edges | 6 |
| Insert Size | 333 |
| Cutting Direction (HAND) | Neutral |
| Insert Thickness (S) | 3/16″ |
| Chip Breaker Type | WF |
| Inscribed Circle Diameter (IC) | 3/8″ |
| Quantity | 10 |
| Insert Included Angle (EPSR) | 60 Degrees |
| Measurement Type | Inch |
| Cutting Edge Material | Cermet |
| Shape | 60° Triangle |
| Coating | TiCN |
| Series/List # | ISOI |
| Grade | TN620 |
| Model No | 8849297 |
