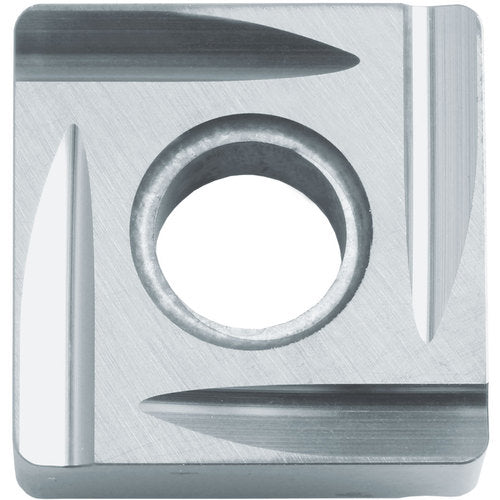

SNGG 322 B TN620, 1/32″ Corner Radius, 1/8″ Thick, 3/8″ Inscribed Circle, TiCN, 90 Degree Square, Turning Indexable Insert
Item #: KY91TSR05282
Brand: Kyocera Precision Tools
Model #: TSR05282
| Product Specifications | |
|---|---|
| Applicable Material | Super-Alloys / Titanium |
| Tool Type | Turning Insert |
| Application | Boring | Chamfering | External Turning | Facing |
| Fixing Hole Diameter (D1) | 0.15″ |
| Insert Style | SNGG |
| Clearance Angle Major (AN) | 0 Degrees |
| Corner Radius (RE) | 1/32″ |
| Number of Cutting Edges | 8 |
| Insert Size | 322 |
| Cutting Direction (HAND) | Left Hand |
| Insert Thickness (S) | 1/8″ |
| Chip Breaker Type | B |
| Inscribed Circle Diameter (IC) | 3/8″ |
| Quantity | 10 |
| Insert Included Angle (EPSR) | 90 Degrees |
| Measurement Type | Inch |
| Cutting Edge Material | Cermet |
| Shape | Square |
| Coating | TiCN |
| Series/List # | ISOI |
| Grade | TN620 |
| Model No | 8862631 |
