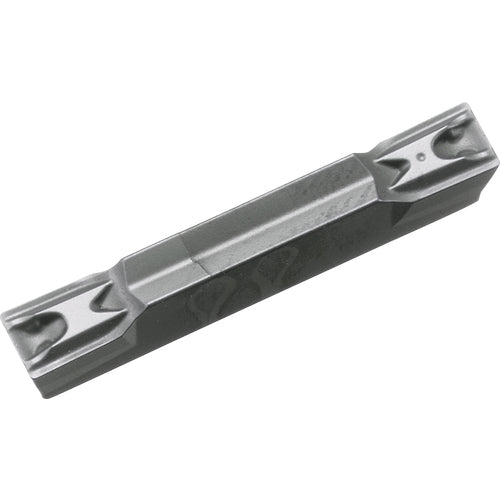

GDM 3020N020GL TN90 Grade Uncoated Cermet, Indexable Grooving Insert
Item #: KY91TSO10643
Brand: Kyocera Precision Tools
Model #: TSO10643
| Product Specifications | |
|---|---|
| Cutting Width (CW) | 3 mm |
| Cutting Direction (HAND) | Neutral |
| Corner Radius (RE) | 0.2 mm |
| Number of Cutting Edges | 2 |
| Cutting Depth Maximum (CDX) | 25.5 mm |
| Chip Breaker Type | GL |
| Insert Thickness (S) | 4.3 mm |
| Insert Style | GDM |
| Insert Length (INSL) | 20 mm |
| Number of Teeth | 2 |
| Grade | TN90 |
| Mounting Style | Clamp |
| Cutting Edge Material | Cermet |
| Series/List # | KGD |
| Application | External Grooving | Traversing |
| Coating Process | Uncoated |
| Applicable Material | Steel | Stainless Steel |
| Measurement Type | Metric |
