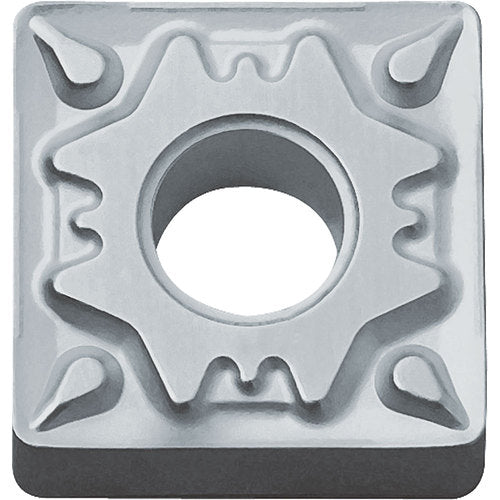

SNMG 431 HQ TN60, 1/64″ Corner Radius, 3/16″ Thick, 1/2″ Inscribed Circle, TiCN/NbC, 90 Degree Square, Turning Indexable Insert
Item #: KY91TSJ01155
Brand: Kyocera Precision Tools
Model #: TSJ01155
| Product Specifications | |
|---|---|
| Applicable Material | Super-Alloys / Titanium |
| Tool Type | Turning Insert |
| Application | Boring | Chamfering | External Turning | Facing |
| Fixing Hole Diameter (D1) | 0.2032″ |
| Insert Style | SNMG |
| Clearance Angle Major (AN) | 0 Degrees |
| Corner Radius (RE) | 1/64″ |
| Number of Cutting Edges | 8 |
| Insert Size | 431 |
| Cutting Direction (HAND) | Neutral |
| Insert Thickness (S) | 3/16″ |
| Chip Breaker Type | HQ |
| Inscribed Circle Diameter (IC) | 1/2″ |
| Quantity | 10 |
| Insert Included Angle (EPSR) | 90 Degrees |
| Measurement Type | Inch |
| Cutting Edge Material | Cermet |
| Shape | Square |
| Coating | TiCN/NbC |
| Series/List # | ISOI |
| Grade | TN60 |
| Model No | 8807923 |
