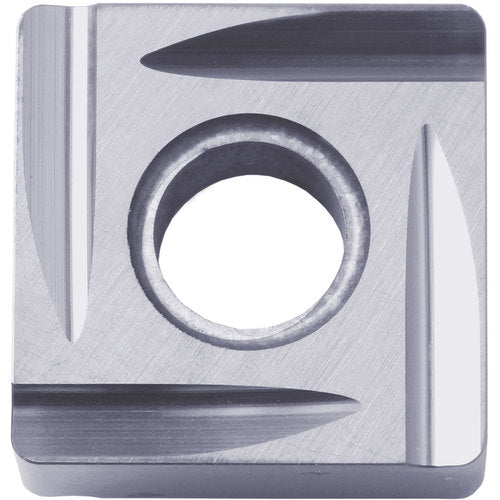

SNGG 432 C PV7005, 1/32″ Corner Radius, 3/16″ Thick, 1/2″ Inscribed Circle, TiC/TiN (MEGACOAT), Square, Turning Indexable Insert
Item #: KY918827508
Brand: Kyocera Precision Tools
Model #: TJA05289
| Product Specifications | |
|---|---|
| Applicable Material | Cast Iron |
| Coating | TiC/TiN (MEGACOAT) |
| Application | External Turning | Facing | Chamfering | Boring |
| Grade | PV7005 |
| Insert Style | SNGG |
| Fixing Hole Diameter (D1) | 0.2031″ |
| Corner Radius (RE) | 1/32″ |
| Clearance Angle Major (AN) | 0 Degrees |
| Insert Size | 432 |
| Number of Cutting Edges | 8 |
| Insert Thickness (S) | 3/16″ |
| Cutting Direction (HAND) | Right Hand |
| Inscribed Circle Diameter (IC) | 1/2″ |
| Chip Breaker Type | C |
| Cutting Edge Material | Cermet |
| Shape | Square |
